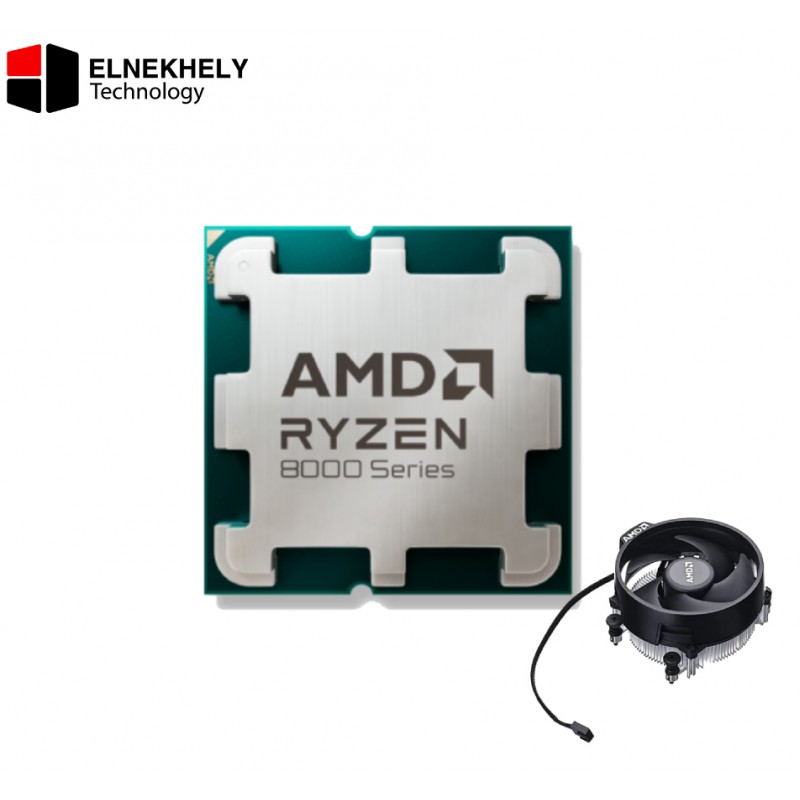

AMD Ryzen™ 7 8700F Processor (Tray / MPK Version)

General

Product Name: AMD Ryzen™ 7 8700F
Series: Ryzen 8000 Series
Codename: Phoenix
Architecture: Zen 4
Socket: AM5
Form Factor: Desktop
TDP (Default): 65W
Configurable TDP (cTDP): 45–65W
Unlocked for Overclocking: Yes
Package Type: Tray (MPK – Multi Pack, includes cooling fan)

CPU Specifications

Cores: 8
Threads: 16
Base Clock: 4.1 GHz
Max Boost Clock: Up to 5.0 GHz
L2 Cache: 8 MB
L3 Cache: 16 MB
Processor Technology: TSMC 4nm FinFET
CPU Compute Die Size: 178 mm²
Package Die Count: 1

Overclocking & Performance Technologies

AMD EXPO™ Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Support: Yes
AMD Ryzen™ Master Support: Yes
Boost Technology: Precision Boost 2

Memory Support

System Memory Type: DDR5
Memory Channels: 2
Maximum Memory: 256 GB
Memory Subtype: UDIMM
Max Memory Speed:
- 2x1R: DDR5-5200
- 2x2R: DDR5-5200
- 4x1R: DDR5-3600
- 4x2R: DDR5-3600

Connectivity

PCIe® Version: PCIe 4.0
Native PCIe® Lanes: 20 (16 usable)
NVMe Support: Boot, RAID 0, RAID 1

USB Support

USB 4 (40Gbps): 2 Ports
USB 3.2 Gen 2 (10Gbps): 2 Ports
USB 2.0 (480Mbps): 1 Port

Graphics

Integrated Graphics: Not available (Discrete GPU required)
AMD SmartAccess Memory: Supported

AI Capabilities

AI Engine: AMD Ryzen™ AI
Performance: Up to 16 TOPS

Operating System Support

Windows 11 (64-bit)
Windows 10 (64-bit)
RHEL x86 (64-bit)
Ubuntu x86 (64-bit)

Product ID

MPK Model Number: 100-000001590
