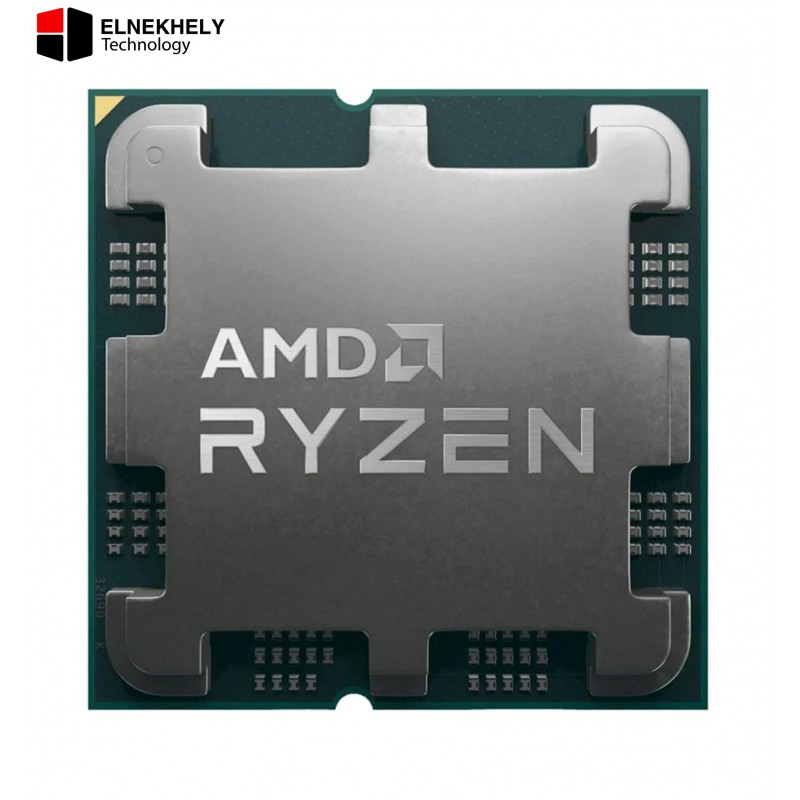

AMD Ryzen 9 9900X Tray Processor – 12 Cores, 24 Threads, Up to 5.6GHz Boost, 64MB L3 Cache, AM5 Socket, Integrated Radeon Graphics, Zen 5 Architecture, 120W TDP
from
19,500 L.E
- Stock: In Stock
- Brand: AMD
- Model: 100-100000662WOF
AMD Ryzen 9 9900X (Tray) – 12-Core, 24-Thread, Up to 5.6GHz, Zen 5 Architecture
Key Features
- 12 Cores / 24 Threads: Designed for high-end gaming, rendering, and multitasking.
- Boost Clock Up to 5.6GHz: Lightning-fast performance powered by Precision Boost 2.
- Zen 5 Architecture: Improved IPC and energy efficiency with TSMC 4nm process.
- Unlocked for Overclocking: Fine-tune your performance with AMD Ryzen™ Master and Curve Optimizer.
- Integrated Radeon™ Graphics: Dual-core RDNA graphics for display output and light gaming.
- Supports PCIe 5.0 and DDR5: Ready for next-gen storage, GPUs, and high-speed memory.
- Socket AM5 Compatibility: Works with X870, X670, B650, and newer chipsets.
Technical Specifications
| Brand / Model | AMD Ryzen™ 9 9900X (Tray) |
|---|---|
| Series | Ryzen 9000 Series |
| Architecture | Zen 5 (Granite Ridge) |
| Core Count | 12 |
| Thread Count | 24 |
| Base Clock | 4.4 GHz |
| Max Boost Clock | Up to 5.6 GHz |
| L1 Cache | 960 KB |
| L2 Cache | 12 MB |
| L3 Cache | 64 MB |
| Default TDP | 120W |
| Unlocked for Overclocking | Yes |
| Processor Technology (CPU Cores) | TSMC 4nm FinFET |
| Processor Technology (I/O Die) | TSMC 6nm FinFET |
| Package Die Count | 3 |
| Socket | AM5 |
| Recommended Cooler | Liquid Cooler Recommended |
| Max Operating Temperature (Tjmax) | 95°C |
Memory & Connectivity
| System Memory Type | DDR5 |
|---|---|
| Memory Channels | 2 |
| Max Memory Capacity | 192 GB |
| Max Memory Speed | DDR5-5600 (2x1R / 2x2R) |
| ECC Support | Yes (with motherboard support) |
| PCI Express Version | PCIe 5.0 |
| Native PCIe Lanes (Total / Usable) | 28 / 24 |
| NVMe RAID Support | RAID0 / RAID1 / RAID5 / RAID10 |
| USB Connectivity | 4x USB 3.2 Gen2 (10Gbps), 1x USB 2.0 (480Mbps) |
Integrated Graphics
| Graphics Model | AMD Radeon™ Graphics |
|---|---|
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C DisplayPort Alt Mode | Yes |
Supported Chipsets
A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
Supported Technologies
- AMD Precision Boost 2
- Precision Boost Overdrive
- Curve Optimizer
- AMD Ryzen™ Master Utility
- AMD EXPO™ Memory Overclocking
- AMD-V Virtualization
- AVX, AVX2, AVX512, AES, SSE, and FMA3 Instructions
Operating System Compatibility
- Windows 11 (64-bit)
- Windows 10 (64-bit)
- RHEL x86 64-bit
- Ubuntu x86 64-bit
Additional Information
| Launch Date | August 15, 2024 |
|---|---|
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Warranty | 3 Years |
