- Stock: In Stock
- Brand: ASUS
- Model: PRIME B760-PLUS
- SKU: 90MB1EF0-M1EAY0
- UPC: 197105102989
- EAN: 4711387102985

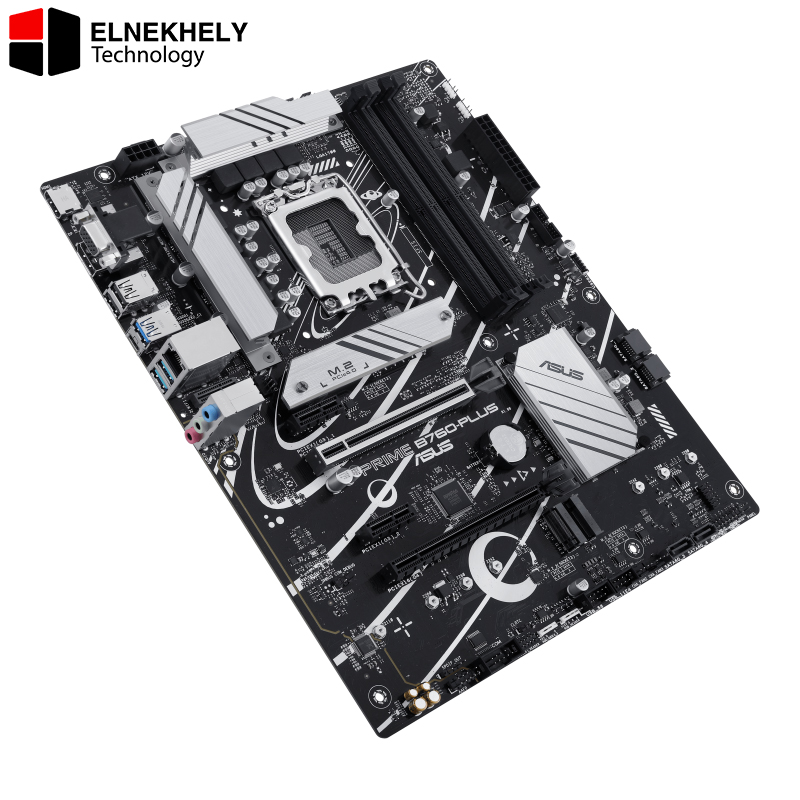

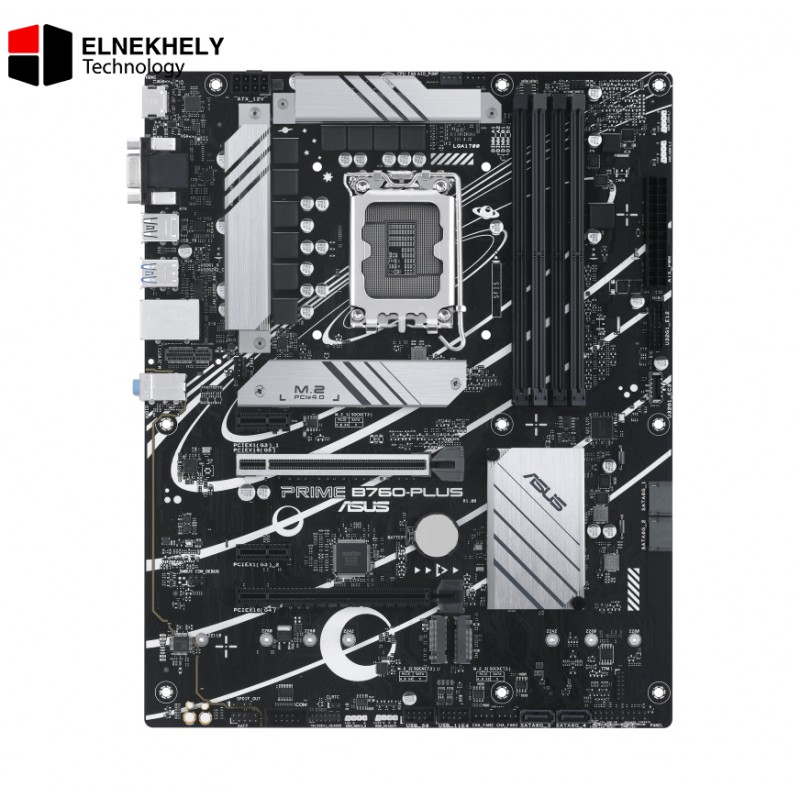

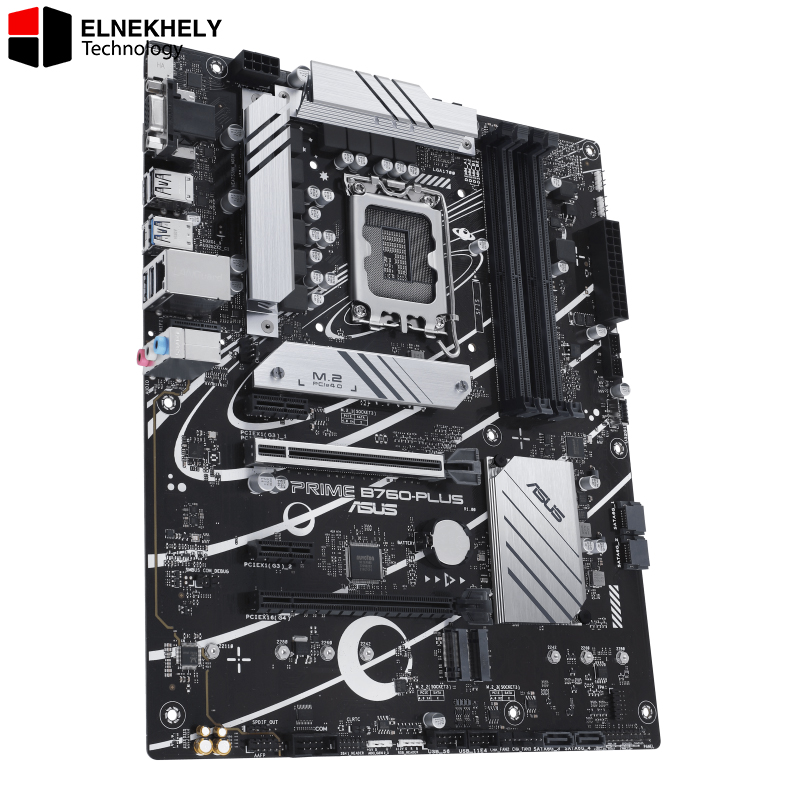

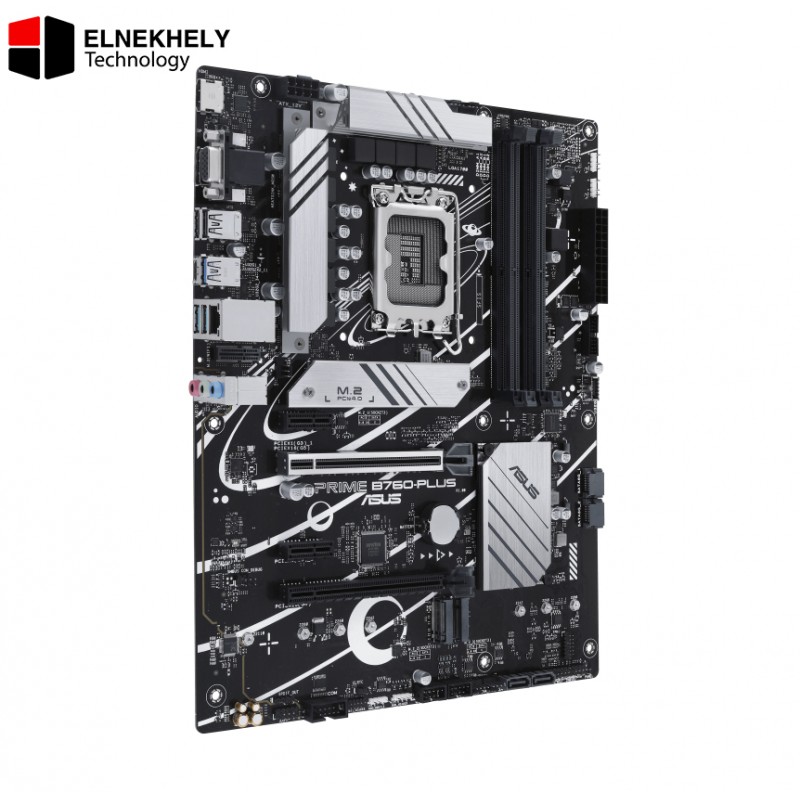

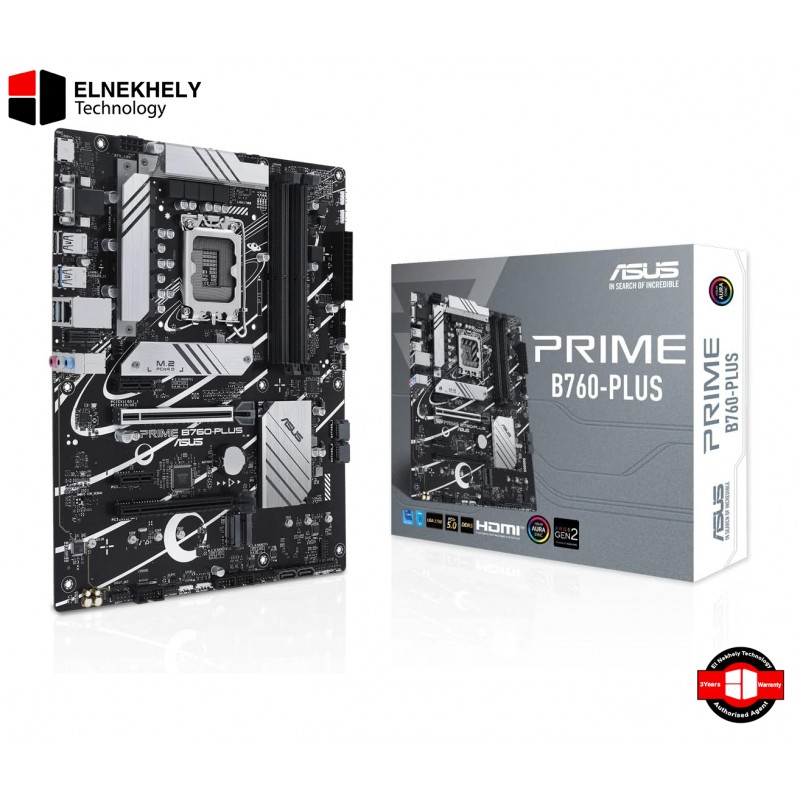

ASUS Prime B760-PLUS ATX Motherboard — Intel® B760, LGA 1700
CPU Support
Intel® LGA 1700 socket
Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
Intel® Turbo Boost Tech 2.0 & 3.0
Chipset
Intel® B760
Memory
4× DDR5 DIMM slots (up to 192GB)
Up to 7200+(OC) MHz
Dual-channel architecture
Intel® XMP & ASUS OptiMem II supported
Graphics Output
1× DisplayPort (4K@60Hz)
1× HDMI 2.1 (4K@60Hz)
1× VGA port
(Graphics depend on CPU)
Expansion Slots
1× PCIe 5.0 x16 (from CPU)
1× PCIe 4.0 x16 (x4 mode)
2× PCIe 3.0 x1
Storage
3× M.2 PCIe 4.0 slots (Key M)
4× SATA 6Gb/s ports
Supports RAID 0/1/5/10
Networking
Realtek 2.5Gb Ethernet
Vertical M.2 E-key slot (for Wi-Fi/Bluetooth module, sold separately)
USB Ports

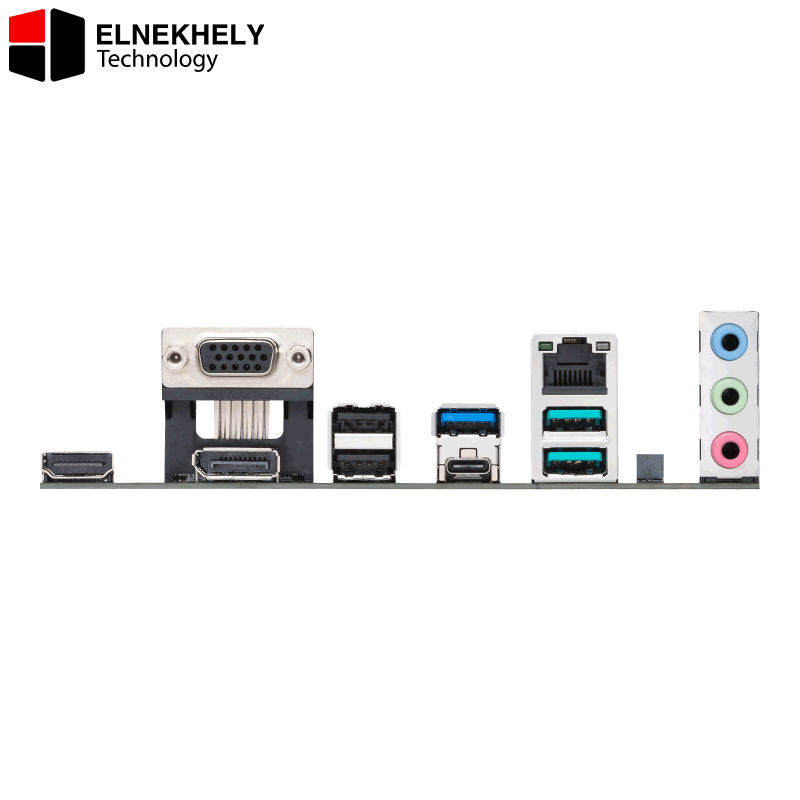

Rear I/O:
1× USB 3.2 Gen 2x2 Type-C®
2× USB 3.2 Gen 2 Type-A
1× USB 3.2 Gen 1 Type-A
2× USB 2.0 Type-A
Front I/O:
1× USB 3.2 Gen 1 Type-C®
2× USB 3.2 Gen 1 (via header)
4× USB 2.0 (via headers)
Audio
Realtek 7.1 Surround HD Audio
24-bit/192kHz playback
Premium capacitors, shielding, and separate PCB layers
Cooling & Fan Headers
VRM, chipset, and M.2 heatsinks
1× CPU fan, 1× AIO pump, 3× chassis fans
Fan Xpert 2+ support
Internal Headers
3× Addressable Gen 2 ARGB
1× Aura RGB header
1× Thunderbolt™ (USB4®) header
Clear CMOS, COM, TPM, S/PDIF, front audio, etc.
Software Features
Armoury Crate: Aura Sync, Fan Xpert 2+, Aura Creator
AI Suite 3, ASUS CPU-Z
UEFI BIOS: EZ Mode, CrashFree BIOS 3, EZ Flash 3
Norton 360 (60-day trial), WinRAR
BIOS
128Mb UEFI AMI BIOS
Accessories Included
2× SATA cables
1× I/O shield
1× M.2 rubber package
2× M.2 screw packages
1× User manual
Form Factor
ATX (30.5 × 24.4 cm)
Operating System Support
Windows® 11 & 10 (64-bit)
