ASUS PRIME Z790-P WIFI LGA1700 ATX Motherboard – Supports Intel 14th, 13th & 12th Gen Processors, DDR5, PCIe 5.0, Wi-Fi 6, USB 3.2 Gen 2, M.2, 4x DIMM Slots, 128GB Max RAM
from
0 L.E
- Stock: In Stock
- Brand: ASUS
- Model: PRIME Z790-P WIFI
- SKU: 90MB1CJ0-M1EAY0
- Model
PRIME Z790-P WIFI - CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th & 12th Gen, Pentium® Gold, and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 - Chipset
Intel® Z790 Chipset - Memory
4 x DIMM, Max. 192GB DDR5
Supports speeds up to 7200+(OC)
Dual Channel Architecture
Supports Intel® XMP and OptiMem II - Graphics
1 x DisplayPort (up to 4K@60Hz)
1 x HDMI® port (up to 4K@60Hz) - Expansion Slots
1 x PCIe 5.0 x16 slot
3 x PCIe 4.0 x16 slots (x4 mode)
1 x PCIe 3.0 x1 slot - Storage
3 x M.2 slots (PCIe 4.0 and SATA modes supported)
4 x SATA 6Gb/s ports
Supports Intel® RAID 0/1/5/10 - Ethernet
1 x Realtek 2.5Gb Ethernet - Wireless & Bluetooth
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
2x2 antenna setup, supports 2.4GHz and 5GHz
Bluetooth® v5.2 - USB (Rear Ports - 8 total)
1 x USB 3.2 Gen 2x2 Type-C®
1 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A - USB (Front Ports - 9 total)
1 x USB 3.2 Gen 2 connector (Type-C® support)
2 x USB 3.2 Gen 1 headers (4 ports)
2 x USB 2.0 headers (4 ports) - Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports up to 24-bit/192kHz playback
Audio shielding, premium capacitors, and dedicated PCB layers - Back Panel I/O

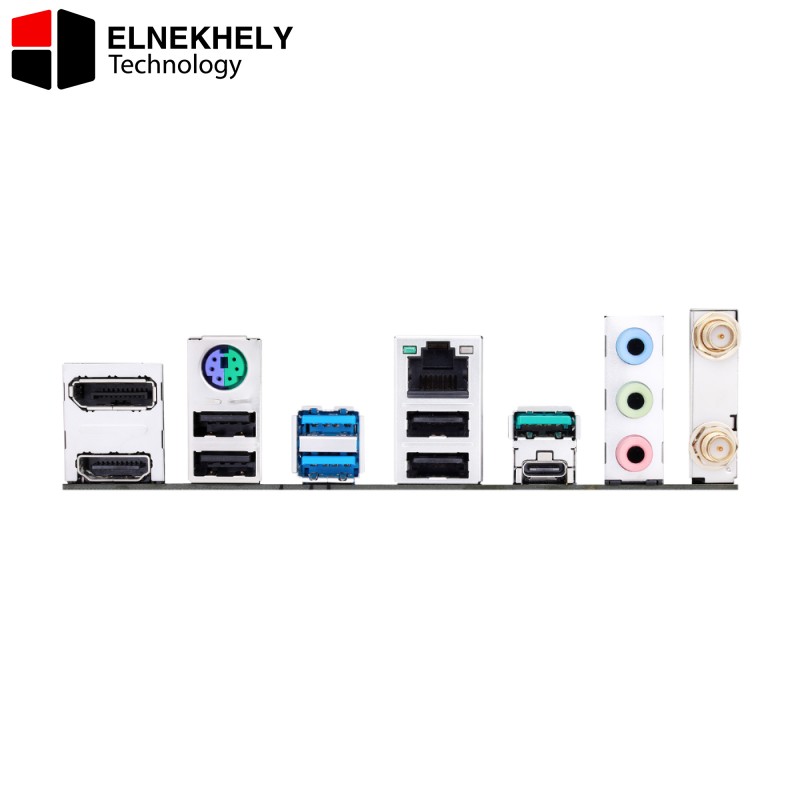

1 x USB 3.2 Gen 2x2 Type-C®
1 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi module
1 x 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port - Internal I/O Connectors
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
3 x M.2 slots
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 2 front connector (Type-C®)
2 x USB 3.2 Gen 1 headers
2 x USB 2.0 headers
3 x Addressable Gen 2 RGB headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 20-5 pin System Panel header
1 x Thunderbolt™ (USB4®) Header - Special Features
ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O - ASUS Q-Design
Q-DIMM
Q-Slot
Q-LED Core - ASUS Thermal Solution
Flexible M.2 heatsink
VRM heatsink - ASUS EZ DIY
ProCool
Aura Sync - Software Features
Armoury Crate with Aura Sync and Fan Xpert 4
AI Suite 3
ASUS CPU-Z
MyASUS
Norton 360 Deluxe (60-day trial)
WinRAR - BIOS
192Mb (128+64) UEFI AMI BIOS
Supports ASUS EZ Flash 3 and CrashFree BIOS 3 - Manageability
WOL by PME
PXE - Accessories
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 screw packages
1 x User guide - Operating System
Windows® 11 and Windows® 10 64-bit - Form Factor
ATX Form Factor
30.5 cm x 23.4 cm (12 inch x 9.2 inch)
