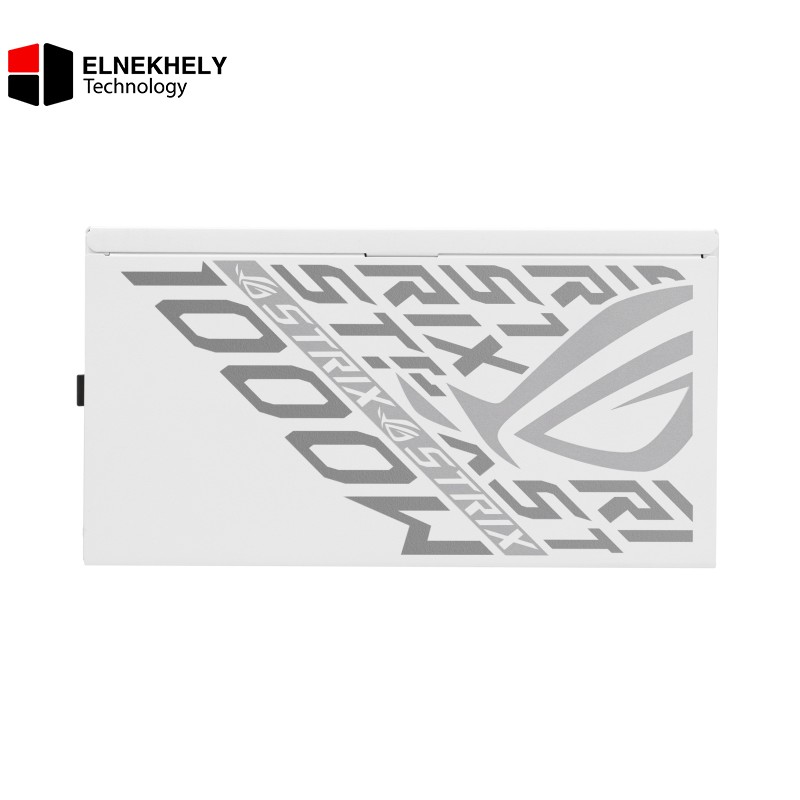

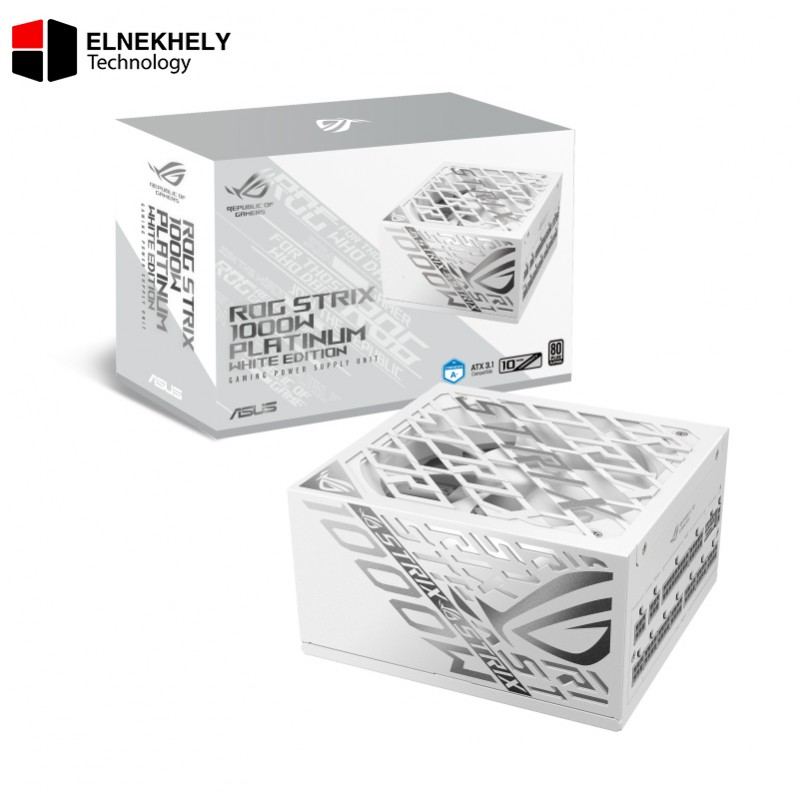

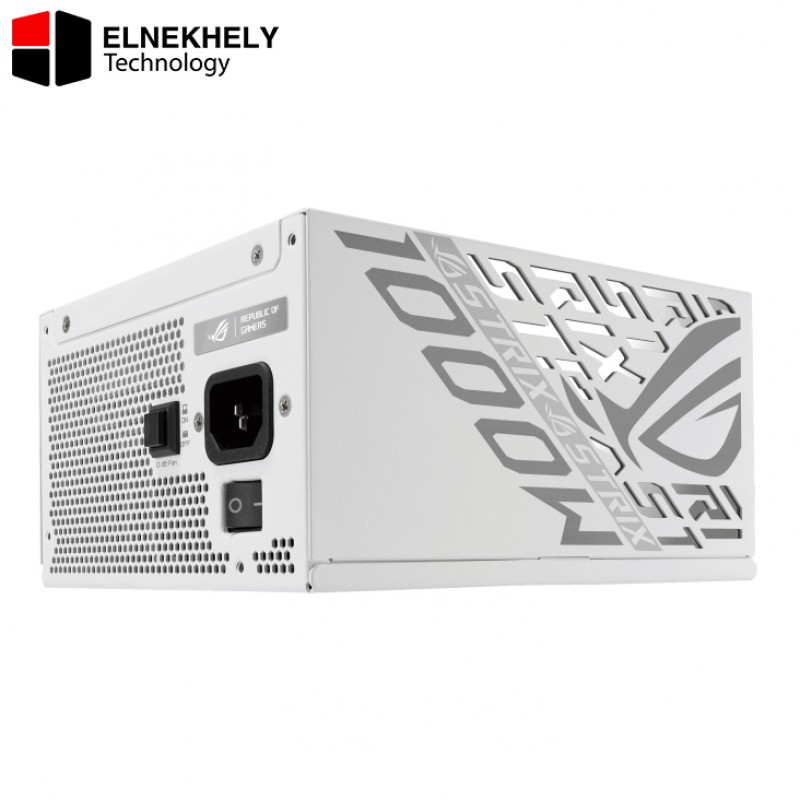

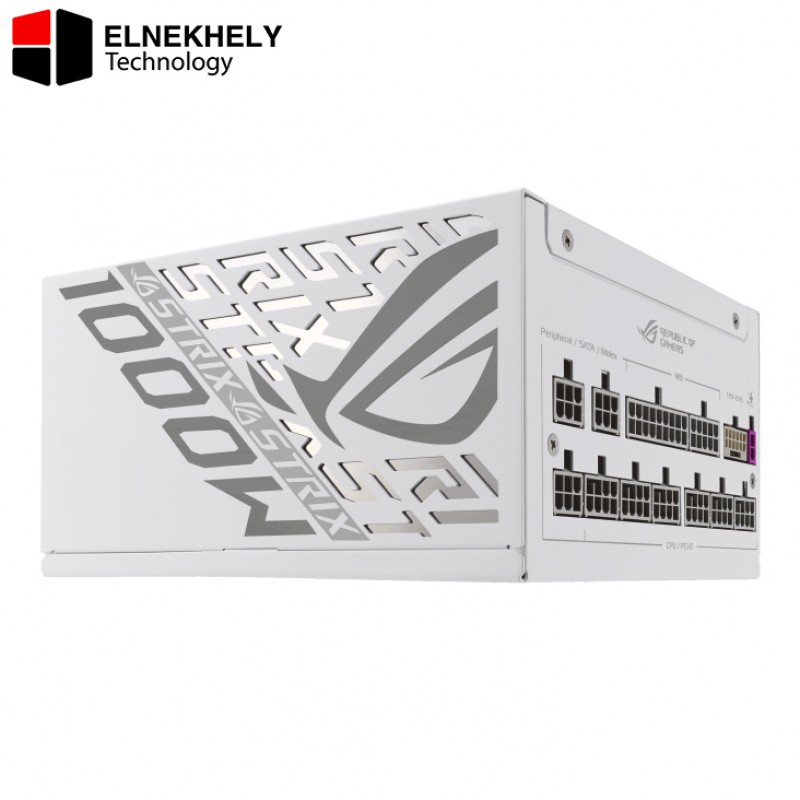

ASUS ROG Strix 1000W Platinum Fully Modular White Edtion PSU, 80 PLUS Platinum Efficiency, Active PFC, GaN MOSFET, ATX 3.1 Compatible, Cybernetic Lambda A+, Dual Ball Fan Bearings, White

General Information

• Form Factor: ATX12V

• PFC Type: Active PFC

• ATX Standard: ATX 3.1

• Total Output Power: 1000W

• Efficiency Rating: 80Plus Platinum (92% efficiency at 50% load)

• MTBF (Mean Time Between Failures): >120,000 hours @ 25°C

• Protection Features:

  • Over Power Protection (OPP)

  • Over Voltage Protection (OVP)

  • Under Voltage Protection (UVP)

  • Short Circuit Protection (SCP)

  • Over Current Protection (OCP)

  • Over Temperature Protection (OTP)

• Hazardous Materials Compliance: RoHS-certified

Physical Specifications

• Dimensions: 160mm (L) x 150mm (W) x 86mm (H)

• Weight: 1.81 kg (single unit)

• Noise Level Certification: Cybenetics Noise Level A+

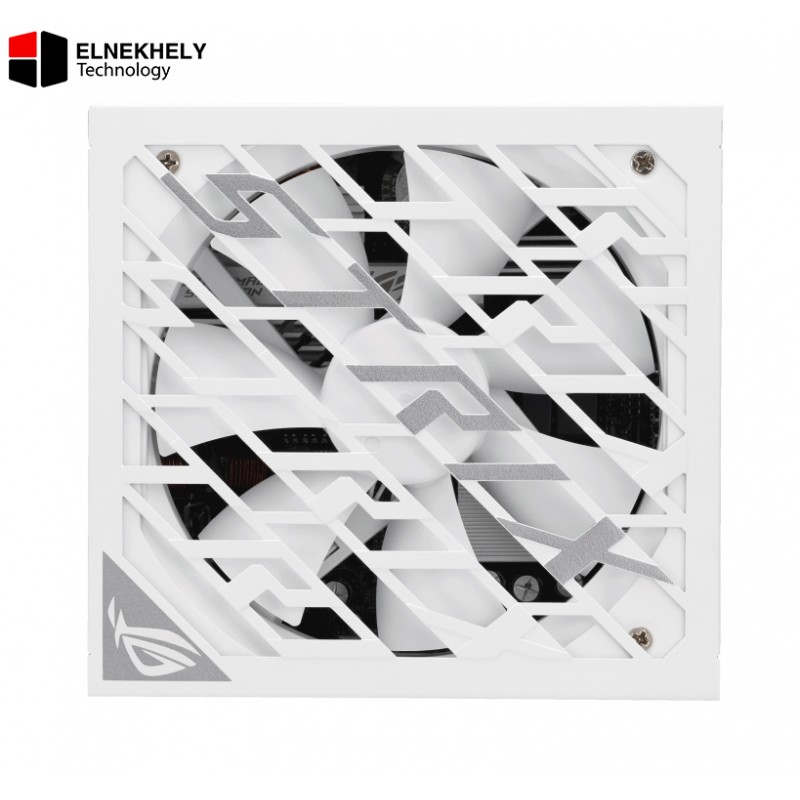

• 0dB Technology:

  • Fan shuts off entirely at low loads (<10%)

  • Includes 0dB Fan Button for manual control:

    • ON: Fan activates only at higher loads

    • OFF: Fan runs continuously at all load levels

• Combined Load Capacity:

  • 130W (+3.3V + +5V)

  • 1000W (+12V)

  • 15W (+5Vsb)

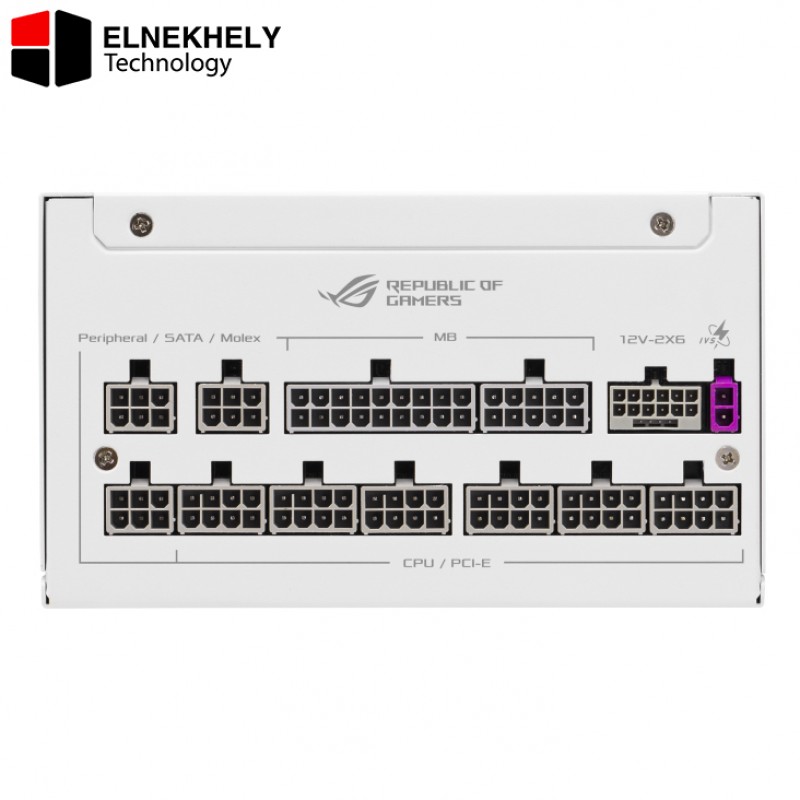

Cable Connectors

• Main Power (Motherboard): 1 x 24/20-pin connector

• CPU Power: 2 x 4+4-pin connectors

• PCIe Graphics:

  • 1 x 16-pin Gen 5.1 (80A, 1000W)

  • 4 x 6+2-pin connectors (for multi-GPU or high-end graphics cards)

• SATA Power: 6 x SATA connectors (for storage devices)

• Peripheral Power: 3 x Peripheral (Molex) connectors (for case fans, etc.)

Package Contents

Cables:

• 1 x Power Cord (100–240V AC)

• 1 x Motherboard Power Cable (610mm)

• 2 x CPU Cables (1000mm each)

• 1 x PCIe Gen 5.1 (16-pin-to-16-pin) Cable (750mm)

• 4 x PCIe (8-pin-to-6+2-pin) Cables (750mm each)

• 2 x SATA 1-to-3 Cables (400mm + 120mm + 120mm)

• 1 x Peripheral 1-to-3 Cable (400mm + 150mm + 150mm)

Accessories:

• ROG Strix DIY Sticker

• User Manual
