ASUS TUF Gaming Z890-PLUS WiFi Z890 LGA 1851 ATX Motherboard, Intel Core Ultra Series 2 Ready, Advanced AI PC-Ready, 16+1+2+1 Stages, DDR5, PCIe 5.0, Thunderbolt 4 Type-C, 4X M.2, Wi-Fi 7, 2.5Gb

Model : TUF GAMING Z890-PLUS WIFI

CPU Support : Intel Core Ultra Processors (Series 2), LGA1851, Intel® Turbo Boost Technology 2.0 & 3.0

Chipset : Intel Z890 Chipset

Memory Slots : 4 x DIMM slots, Max. 192GB, DDR5

Memory Support :Up to 9066+ MT/s (OC), Non-ECC, Un-buffered, Dual channel memory architecture, Supports Intel® XMP and ASUS AEMPIII

Graphics : 1 x DisplayPort, 1 x HDMI™, 1 x Intel Thunderbolt™ 4 (USB Type-C) with DisplayPort, 1 x USB 20Gbps Type-C® with DisplayPort support

Expansion Slots : 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (supports x4), 1 x PCIe 4.0 x4, 2 x PCIe 4.0 x1

Storage Support : 4 x M.2 slots (PCIe 5.0/4.0) & 4 x SATA 6Gb/s

Ethernet : 1 x Intel 2.5Gb Ethernet, TUF LANGuard

Wireless & Bluetooth : Wi-Fi 7 (802.11be), 2x2, 2.4/5/6GHz, up to 2.9Gbps transfer rate, Bluetooth v5.4

USB Ports : 1 x Thunderbolt 4 (USB Type-C), 1 x USB 20Gbps Type-C®, 3 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A, Front USB ports for additional connectors

Audio : Realtek ALC1220P 7.1 Surround Sound, Optical S/PDIF, High-quality 120 dB SNR stereo playback, Premium audio capacitors

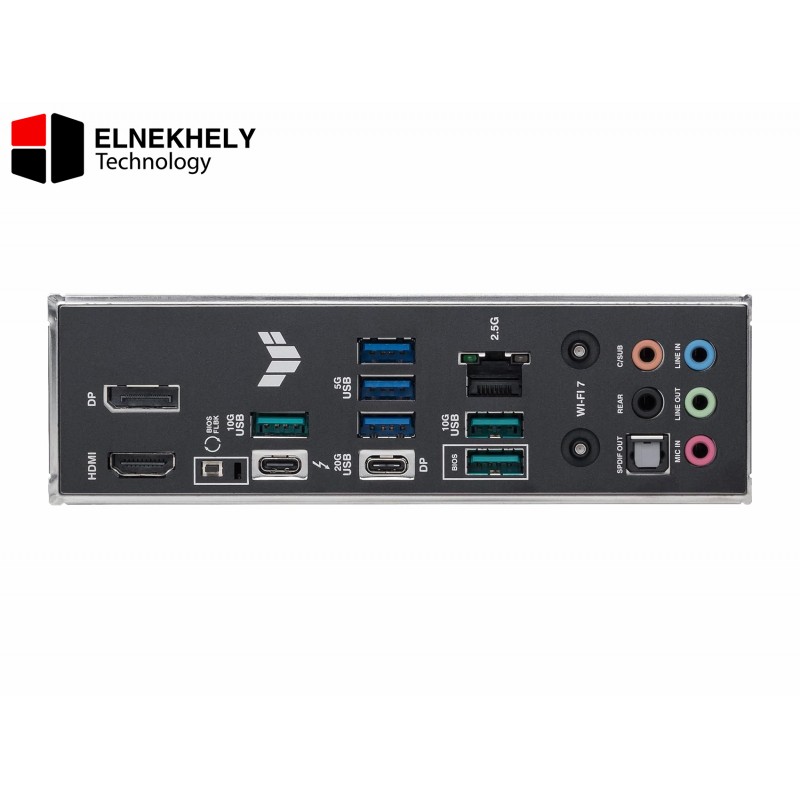

Back Panel I/O : PortsThunderbolt™ 4 USB Type-C, USB 20Gbps Type-C®, USB 10Gbps x3, USB 5Gbps x3, DisplayPort, HDMI™ 2.1, Wi-Fi module, Intel 2.5Gb Ethernet, Audio jacks, BIOS FlashBack™ button

Internal I/O Connectors : Includes multiple headers for USB, cooling, storage, and special features like Q-Design and thermal solutions

Special Features  : ASUS TUF PROTECTION (VRM, ESD Guards, TUF LANGuard), ASUS Thermal Solution (Heatsinks for M.2, VRM), Aura Sync, Q-Design, BIOS FlashBack™, SafeDIMM

Software Features : Armoury Crate, TurboV Core, Fan Xpert 4, DTS Audio, ASUS DriverHub, ASUS GlideX, TUF GAMING CPU-Z, Norton 360 Free Trial

BIOS : 256Mb Flash ROM, UEFI AMI BIOS, ASUS EZ DIY (CrashFree BIOS, EZ Flash, MyHotkey), NPU Boost

Accessories Included : SATA cables, M.2 rubber packages, M.2 Q-Slide package, TUF GAMING sticker, removable nameplate, Quick start guide

Operating System : Windows 11 (22H2 & later)

Form Factor:  ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
