ASUS TUF Gaming Z890-PRO WiFi Z890 LGA 1851 ATX Motherboard, Intel® Core™ Ultra Series 2 Ready, Advanced AI PC-Ready, 16+1+2+1 Stages, DDR5, PCIe® 5.0, Thunderbolt 4 Type-C, 4X M.2, Wi-Fi 7, 2.5Gb

TUF GAMING Z890-PRO WIFI Specifications
Processor & Memory:

• Supports Intel® Core™ Ultra (Series 2) processors with LGA1851 socket.

• DDR5 memory, up to 256GB, speeds up to 9066+ MT/s (OC).

• Supports Intel® XMP and ASUS AEMP III.

Storage & Expansion:

• 4 x M.2 slots (supports PCIe 5.0 & 4.0) and 4 x SATA 6Gb/s ports.

• Supports RAID 0/1/5/10 via Intel® Rapid Storage Technology.

• 3 x PCIe x16 slots (one PCIe 5.0, two PCIe 4.0).

Networking & Connectivity:

• Wi-Fi 7 (2x2) + Bluetooth 5.4.

• Intel® 2.5Gb Ethernet with TUF LANGuard protection.

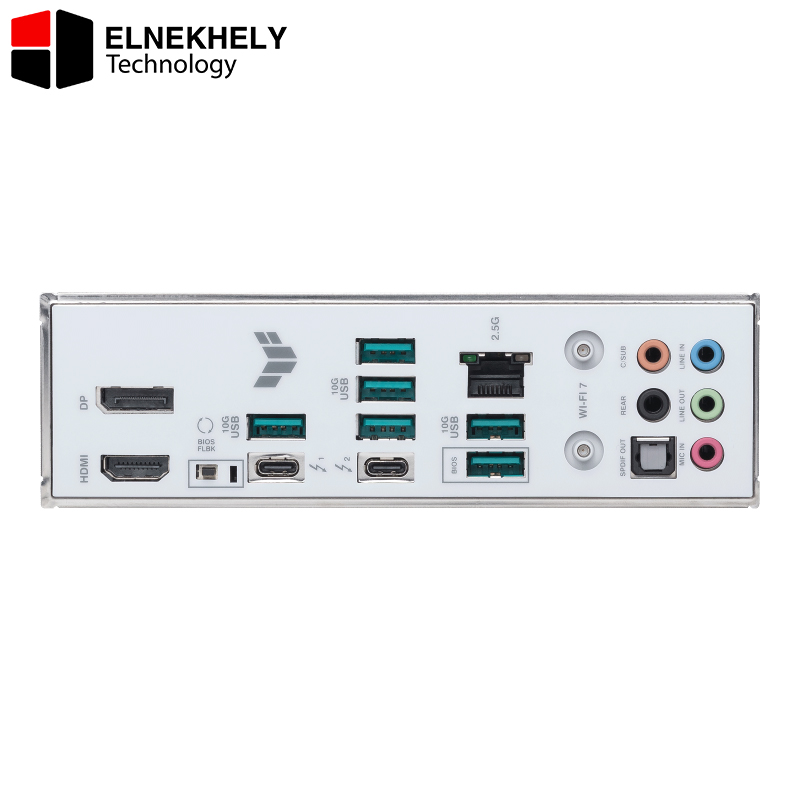

Ports & Interfaces:

• USB:

• 8 rear ports including 2 x Thunderbolt™ 4 and 6 x USB 10Gbps (Type-A).

• 7 front ports, including USB 20Gbps (supports fast charging up to 30W).

• Video Outputs:

• HDMI 2.1 & DisplayPort 1.4 (supports 4K@60Hz).

• Thunderbolt™ 4 supports up to 8K@60Hz.

Audio:

• Realtek ALC1220P 7.1 HD audio codec, supports 32-bit/192kHz playback.

• High-quality capacitors and isolated PCB for enhanced audio quality.

Special Features:

• TUF PROTECTION: Overvoltage protection, ESD Guards, and stainless steel I/O shielding.

• Q-Design: Features like M.2 Q-Latch and Q-Release for easy installation.

• Aura Sync RGB for customizable lighting effects.

• AI Overclocking and Fan Xpert 4 for optimized cooling performance.

OS & Compatibility:

• Compatible with Windows 11 (22H2 & later).

• ATX form factor, dimensions 30.5 × 24.4 cm.
