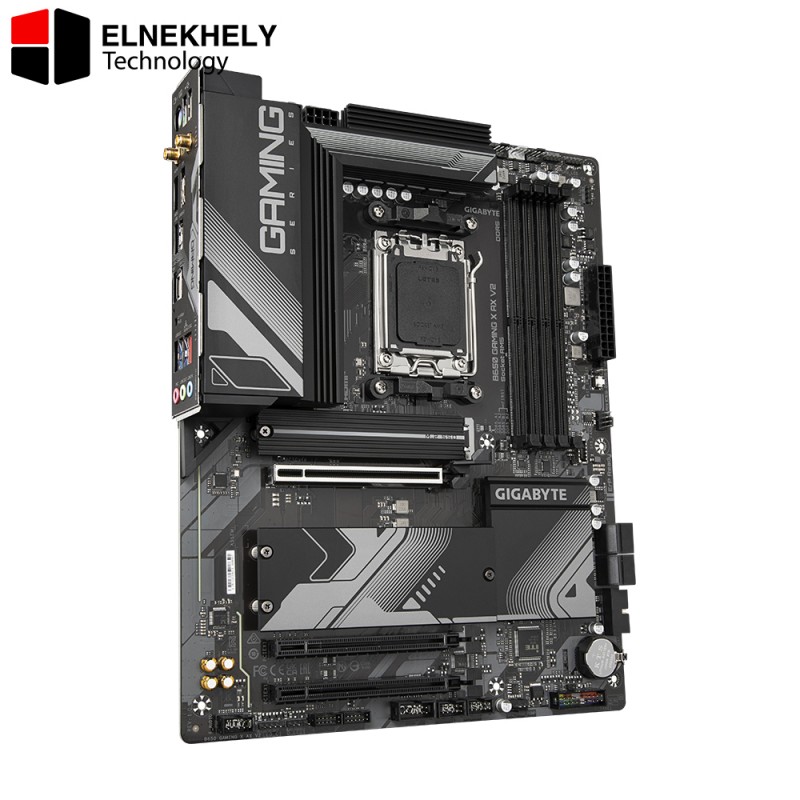

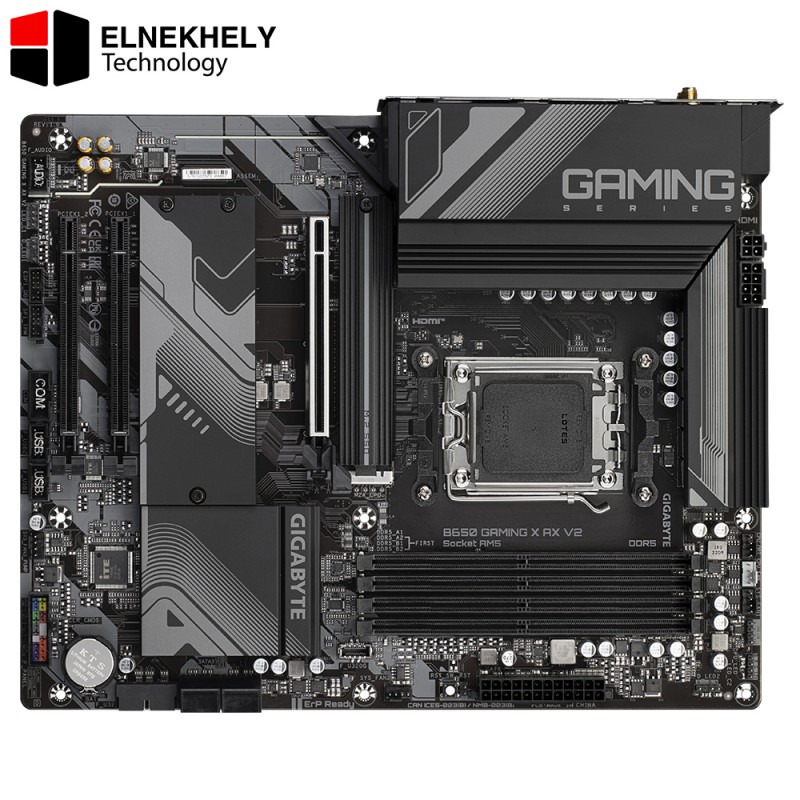

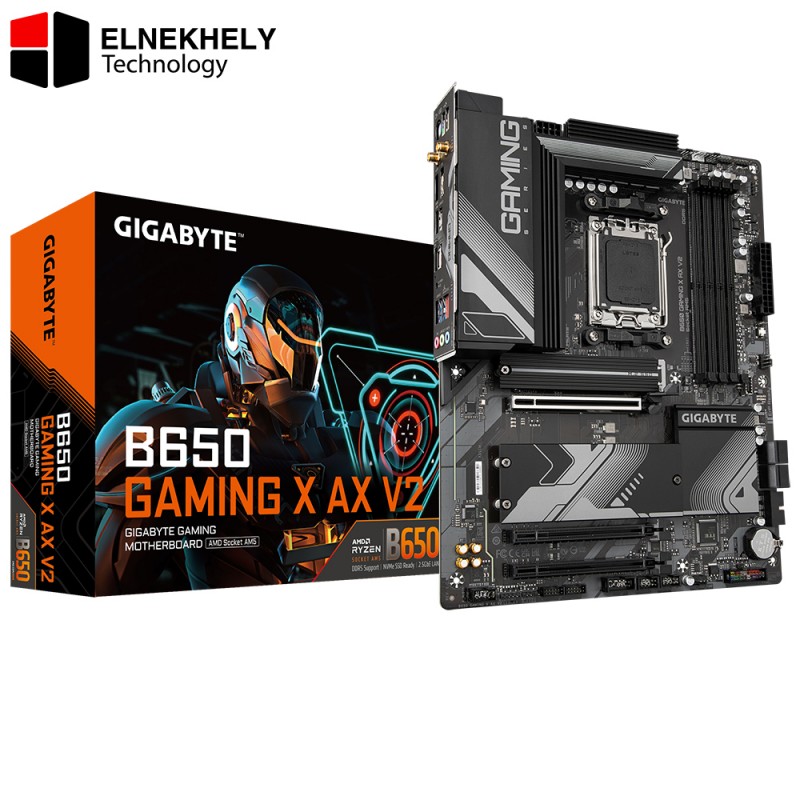

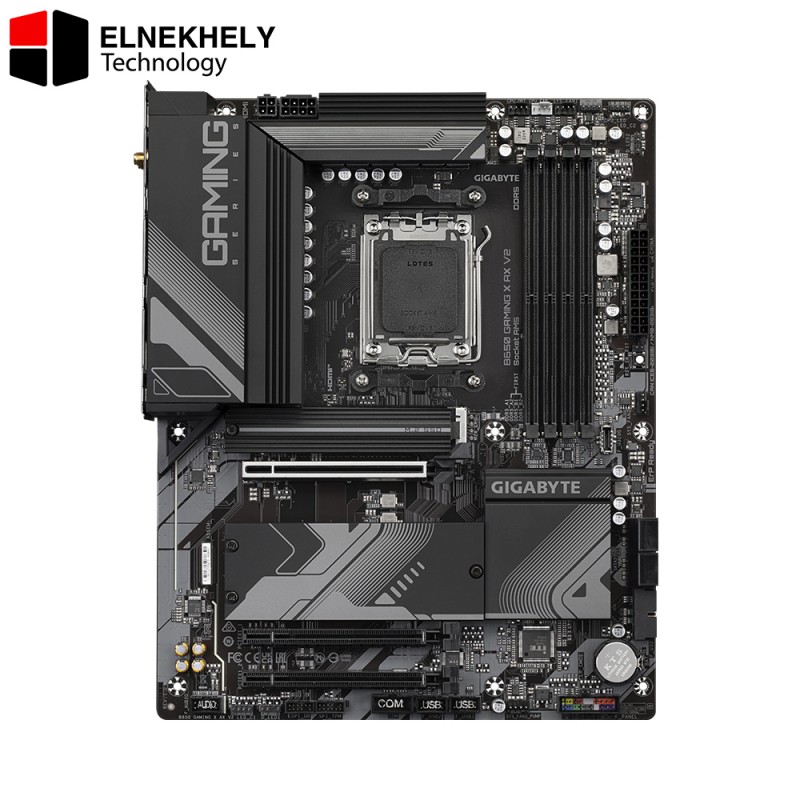

GIGABYTE B650 Gaming X AX V2 (rev. 1.0) AM5 LGA 1718 AMD B650 ATX DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2x2 Type-C, AMD Wi-Fi 6E, Realtek 2.5GbE LAN

GIGABYTE B650 Motherboard

Model: (Specific model name not mentioned)
Form Factor: ATX (30.5 x 24.4 cm)
Chipset: AMD B650
CPU Socket: AMD AM5
Supported CPUs: AMD Ryzen™ 7000 / 8000 / 9000 Series
(Refer to official CPU support list for detailed compatibility)

Memory Support

• Memory Type: DDR5

• Max Speed (OC): Up to 8000 MT/s

• Memory Slots: 4 x DIMM

• Max Capacity: 256 GB (64 GB per DIMM)

• Channel Architecture: Dual Channel

• Profiles Supported: AMD EXPO™, Intel XMP

• Module Types: Non-ECC, Unbuffered

Graphics (Integrated GPU)

• DisplayPort 1.4: Up to 3840x2160 @ 144Hz

• HDMI 2.1: Up to 4096x2160 @ 60Hz

• Graphics output availability depends on CPU

Audio

• Codec: Realtek® High Definition Audio

• Channels: 2/4/5.1/7.1

• Customizable via audio software

Networking

• LAN: Realtek® 2.5Gb Ethernet

• Wi-Fi & Bluetooth:

  • Wi-Fi 6E (2.4/5/6 GHz support)

  • Bluetooth 5.2 / 5.3 (varies by board revision)

Expansion Slots

• 1 x PCIe x16 (CPU):

  • Ryzen 7000/9000: PCIe 4.0 x16

  • Ryzen 8000 Phoenix 1: PCIe 4.0 x8

  • Ryzen 8000 Phoenix 2: PCIe 4.0 x4

• 2 x PCIe x1 (Chipset): PCIe 3.0

Storage Interfaces

• M.2 Slots (3 total):

  • M2A_CPU: PCIe 5.0/4.0 x4

  • M2B_CPU: PCIe 4.0 x4

  • M2C_SB: PCIe 4.0 x4

  • Supports 22110/2280/2580/25110 SSDs

• SATA Ports: 4 x SATA 6Gb/s

• RAID Support: RAID 0/1/10 for both NVMe and SATA

USB Connectivity

Back Panel:

• 1 x USB-C 3.2 Gen 2

• 1 x USB-A 3.2 Gen 2

• 3 x USB 3.2 Gen 1

• 3 x USB 2.0

Internal Headers:

• 1 x USB-C 3.2 Gen 2x2

• 2 x USB 3.2 Gen 1

• 4 x USB 2.0

Internal Connectors

• 24-pin ATX + 8-pin + 4-pin power

• Multiple fan & AIO headers

• RGB / ARGB headers

• TPM, Clear CMOS, Reset jumper, Serial port

• Front panel I/O, audio, USB, and LED connectors

Back Panel Ports

• 2 x Antenna connectors

• 1 x DisplayPort, 1 x HDMI

• 1 x USB-C (Gen 2)

• 1 x USB-A 3.2 Gen 2

• 3 x USB 3.2 Gen 1

• 3 x USB 2.0

• 1 x RJ-45 (2.5Gb LAN)

• 3 x Audio jacks

• Q-Flash Plus button

Other Features

• BIOS: AMI UEFI, 256Mbit Flash

• Software: Norton OEM, LAN Manager

• Special Functions:

  • Q-Flash & Q-Flash Plus

  • GIGABYTE Control Center (GCC)

  • Fan speed/temperature monitoring

  • RGB Fusion support

OS Compatibility

• Windows 11 64-bit

• Windows 10 64-bit
