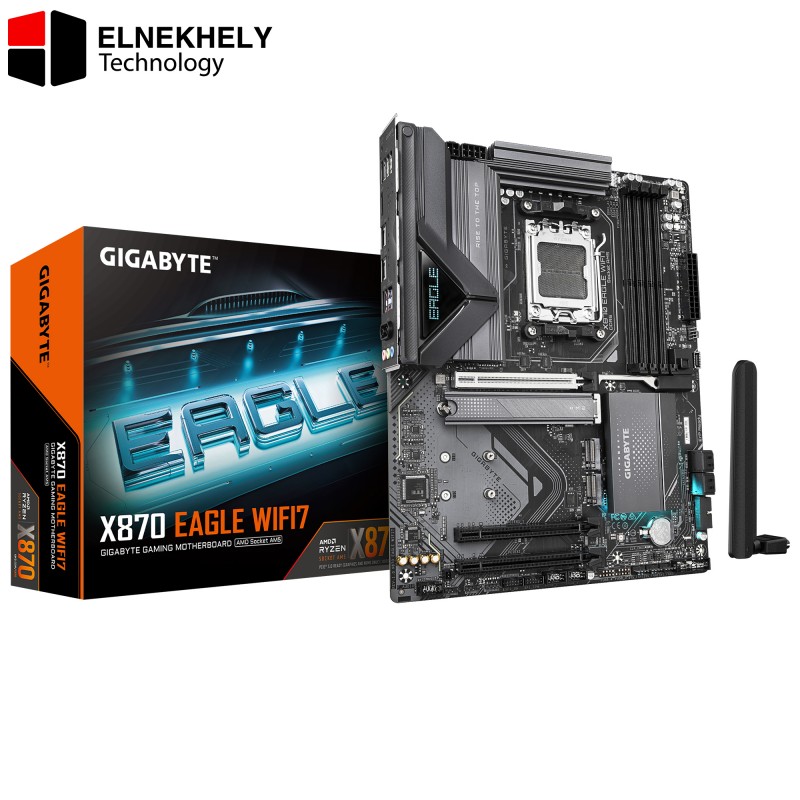

Elnekhely Technology GIGABYTE X870 Eagle WIFI7 AMD AM5 LGA 1718 Motherboard, ATX, DDR5, 4X M.2, PCIe 5.0, USB4, WIFI7, 2.5GbE LAN, EZ-Latch
from
0 L.E
- Stock: In Stock
- Brand: Gigabyte
- Model: 9MX87EG7-00-G11
- UPC: 889523045312
- EAN: 4719331864996
CPU:
-Supported Sockets: AMD Socket AM5.
- Supported Processors:
- AMD Ryzen™ 9000 Series.
- AMD Ryzen™ 8000 Series.
- AMD Ryzen™ 7000 Series.
- (Refer to GIGABYTE's website for the latest CPU support list.)
___________________________________
Chipset:
- Model: AMD X870.
___________________________________
Memory:
-Supported Memory Types: DDR5.
- Memory Speeds (OC): 8200 / 8000 / 7800 / 7600 / 7200 / 7000 / 6800 / 6666 / 6600 / 6400 / 6200 / 6000 / 5600 / 5200 / 4800 / 4400 MT/s.
- DIMM Slots: 4 x DDR5 DIMM sockets.
- Max Capacity:Up to 256 GB (64 GB per DIMM).
- Memory Architecture: Dual channel.
- Supported Profiles: AMD EXPO™ and XMP.
- Memory Modules: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16.
- (Refer to GIGABYTE's "Memory Support List" for detailed compatibility.)
___________________________________
Onboard Graphics:
- Integrated Graphics Processor: AMD Radeon™ Graphics.
- Supported Ports:
- USB4® (via ASMedia Controller):
- 2 x USB4® USB Type-C® ports.
- Supports DisplayPort 1.4 and HDR.
- Max resolution: 3840x2160@240 Hz.
- HDMI:
- 1 x HDMI port (HDMI 2.1).
- Max resolution: 4096x2160@60 Hz.
- Supports HDCP 2.3 and HDR.
- (Graphics specifications depend on CPU support.)
___________________________________
Audio:
-Audio CODEC: Realtek® High Definition Audio.
-Channels: 2/4/5.1/7.1-channel.
- Software Configurable: Audio jack functionality can be customized via audio software.
___________________________________
LAN:
- Ethernet:Realtek® 2.5GbE LAN chip (2.5/1/0.1 Gbps).
___________________________________
Wireless Communication:
- Wi-Fi Modules:
- MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0):
- Supports 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz).
- Bluetooth 5.4.
- Supports 11be 160MHz.
- Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1):
- Supports 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz).
- Bluetooth 5.4.
- Supports 11be 160MHz.
___________________________________
Expansion Slots:
- PCIe Slots:
- 1 x PCIe x16 (PCIEX16):
- Ryzen™ 9000/7000: PCIe 5.0 x16.
- Ryzen™ 8000 Phoenix 1: PCIe 4.0 x8.
- Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4.
- 2 x PCIe x16 (PCIEX1_1/2):
- Supports PCIe 3.0 x1.
- PCIEX16 slot supports graphics cards or NVMe SSDs.
- Install graphics cards in the PCIEX16 slot for optimal performance.
___________________________________
Storage Interface:
- M.2 Connectors:
- M2A_CPU (CPU-integrated):
- Supports PCIe 5.0 x4/x2 (Ryzen™ 9000/7000).
- Supports PCIe 4.0 x4/x2 (Ryzen™ 8000).
- M2C_SB (Chipset-integrated):
- Supports PCIe 4.0 x2.
- M2B_SB (Chipset-integrated):
- Supports PCIe 4.0 x4/x2.
- Shares bandwidth with M2C_SB (downgrades to x2 if M2C_SB is occupied).
- SATA Connectors: 4 x SATA 6Gb/s.
- RAID Support:
- NVMe SSDs: RAID 0, 1, 5, 10 (RAID 5 only for Ryzen™ 9000).
- SATA Devices: RAID 0, 1, 10.
___________________________________
USB:
- CPU + ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports (back panel).
- CPU:
- 1 x USB 3.2 Gen 2 Type-A (red, back panel).
- 1 x USB 3.2 Gen 1 (back panel).
- CPU + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports (back panel).
- Chipset:
- 1 x USB Type-C® (USB 3.2 Gen 2x2, internal header).
- 4 x USB 3.2 Gen 1 (2 back panel, 2 internal headers).
- 4 x USB 2.0/1.1 (internal headers).
___________________________________
Internal I/O Connectors:
- Power Connectors:
- 1 x 24-pin ATX main power.
- 1 x 8-pin ATX 12V.
- 1 x 4-pin ATX 12V.
- Fan Headers:
- 1 x CPU fan.
- 1 x CPU fan/water cooling pump.
- 4 x system fan headers.
- RGB Headers:
- 3 x Addressable RGB Gen2 LED strip headers.
- 1 x RGB LED strip header.
- Storage Connectors:
- 4 x SATA 6Gb/s.
- 3 x M.2 Socket 3.
- Other Headers:
- Front panel, front panel audio, USB Type-C® (USB 3.2 Gen 2x2), USB 3.2 Gen 1, USB 2.0/1.1, TPM header.
- Buttons/Jumpers:
- Power button, reset button, reset jumper, Clear CMOS jumper.
___________________________________
Back Panel Connectors:
- Buttons: 1 x Q-Flash Plus.
- Wireless: 2 x antenna connectors (2T2R).
- Video Outputs:
- 1 x HDMI.
- 2 x USB4® USB Type-C® (DisplayPort).
- USB Ports:
- 1 x USB 3.2 Gen 2 Type-A (red).
- 3 x USB 3.2 Gen 1.
- 4 x USB 2.0/1.1.
- Networking: 1 x RJ-45 port.
- Audio: 3 x audio jacks.
___________________________________
I/O Controller:
-Model: iTE® I/O Controller Chip.
___________________________________
Hardware Monitoring:
- Features:
- Voltage, temperature, and fan speed detection.
- Water cooling flow rate detection.
- Fan fail warning and speed control.
- *(Fan/pump speed control depends on installed hardware.)*
___________________________________
BIOS:
- Size: 256 Mbit flash.
- Type: Licensed AMI UEFI BIOS.
- Standards: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
___________________________________
Unique Features:
- Software:
- GIGABYTE Control Center (GCC).
- Q-Flash and Q-Flash Plus.
- Smart Backup.
- Bundled Software:
- Norton® Internet Security (OEM version).
- LAN bandwidth management software.
___________________________________
Operating System:
- Supported OS: Windows 11 64-bit.
___________________________________
Form Factor:
- Size:ATX (30.5 cm x 24.4 cm).
