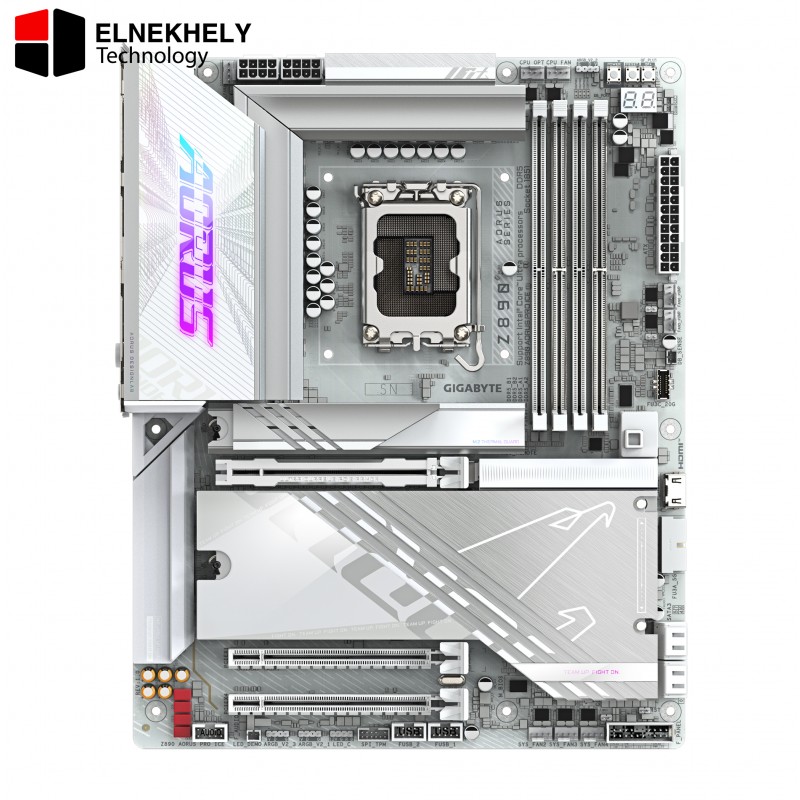

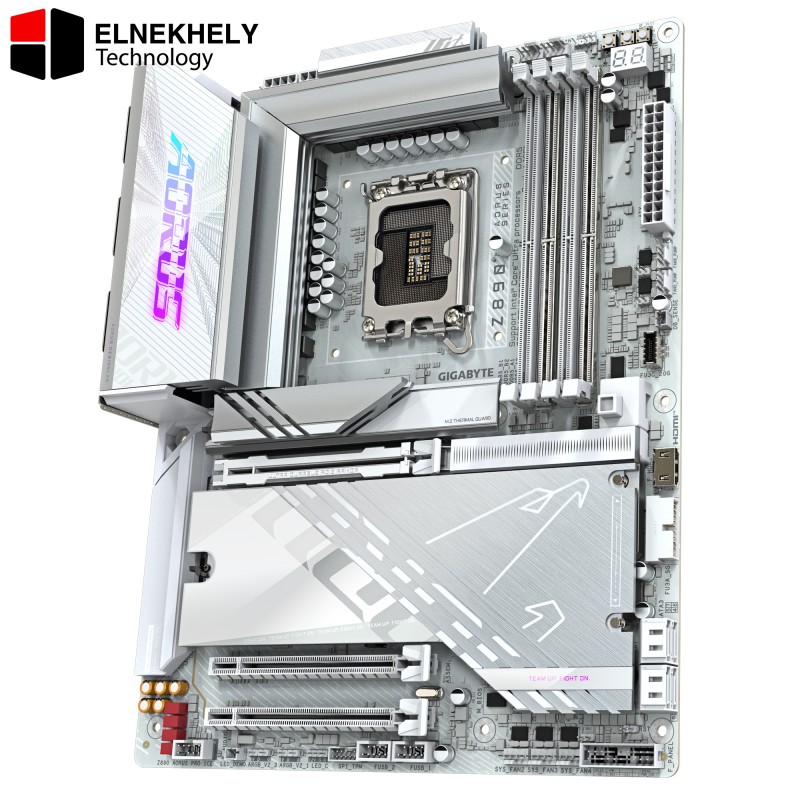

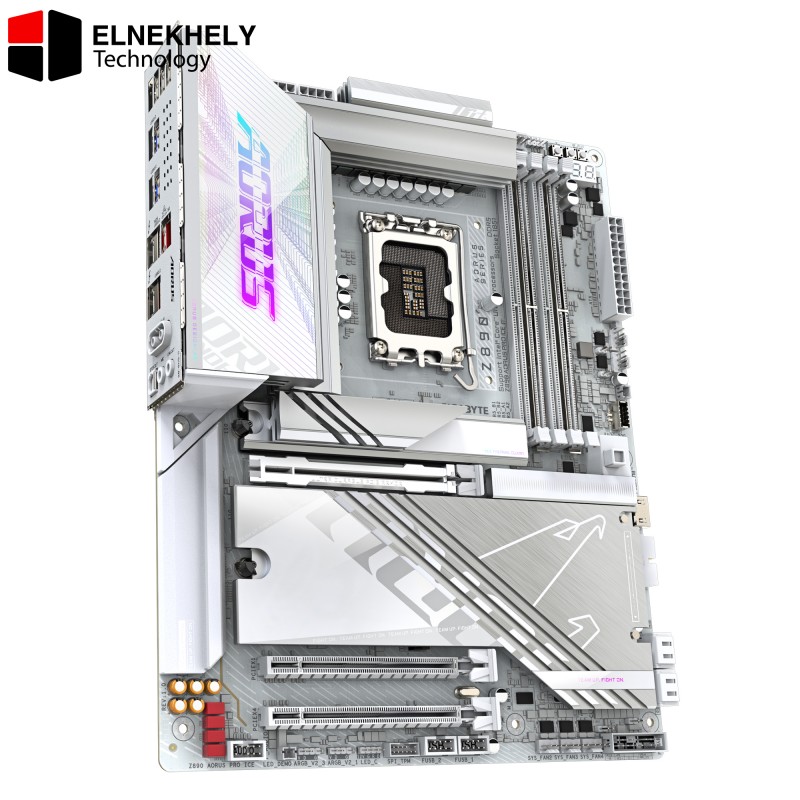

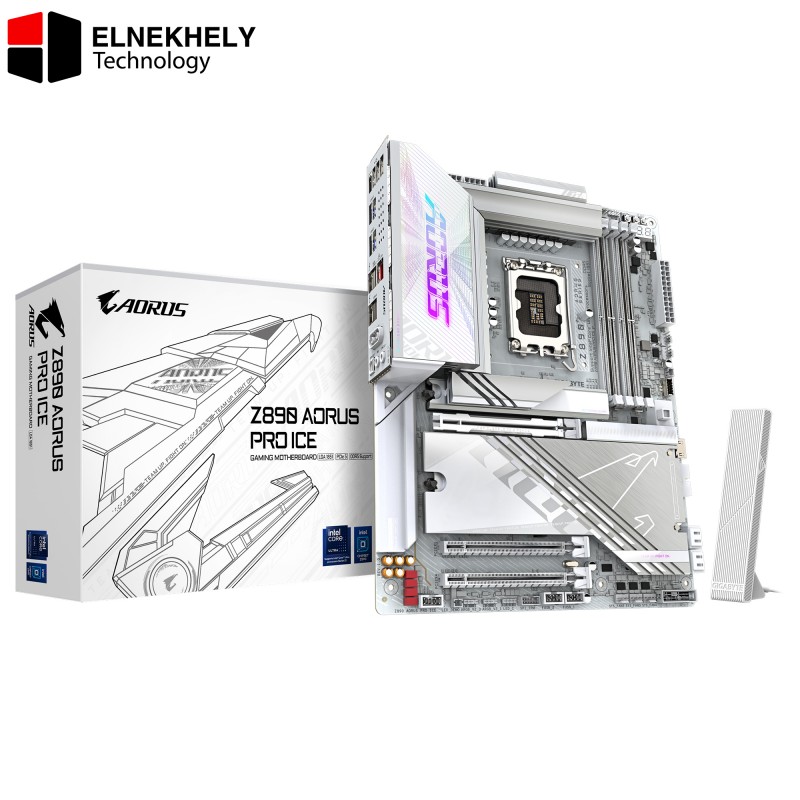

GIGABYTE Z890 AORUS PRO ICE – ATX Motherboard for Intel Core Ultra (Series 2), LGA 1851, DDR5, 5x M.2, PCIe 5.0, Thunderbolt 4, Wi-Fi 7, 5GbE LAN, EZ-Latch

Motherboard – Intel Z890 Chipset (LGA1851 Socket)

CPU Support:

• LGA1851 socket, compatible with Intel® Core™ Ultra processors

• L3 cache size depends on CPU model

• Integrated graphics support requires a compatible CPU

Chipset:

• Intel® Z890 Express Chipset

Memory:

• Supports DDR5 memory up to 9500 MT/s (OC)

• 4x DDR5 DIMM slots (up to 256GB total, 64GB per DIMM)

• Dual-channel architecture

• ECC/Non-ECC unbuffered DIMMs supported

• Supports XMP and CUDIMM profiles

Graphics:

• Integrated Intel® HD Graphics (with supported CPU)

• 2x Thunderbolt™ 4 (USB4® Type-C) with DisplayPort support

  • Up to 5120x2880@60Hz (Thunderbolt)

  • Up to 3840x2160@240Hz (USB4 Type-C)

• 1x HDMI (front), max 1920x1080@30Hz

• Triple display support

• DisplayPort 1.4 and HDCP 2.3 support

Audio:

• Realtek® ALC1220 codec

• High-definition 7.1-channel audio

• DSD and S/PDIF out support

Networking:

• Realtek® 5GbE LAN

• Intel® Wi-Fi 7 (BE200) and Bluetooth 5.4

• Supports 2.4/5/6GHz bands and 320MHz channels

• Windows 11 required for full Wi-Fi 7 functionality

Expansion Slots:

• 1x PCIe 5.0 x16 (CPU) – for GPU or NVMe SSD

• 1x PCIe 4.0 x4, 1x PCIe 4.0 x1 (Chipset)

Storage:

• 5x M.2 slots (PCIe 5.0 & 4.0 support)

• 1x M.2 supports SATA

• 4x SATA 6Gb/s ports

• RAID 0/1/5/10 support (SATA & NVMe)

USB Ports:

• Rear:

  • 2x Thunderbolt™ 4 (Type-C)

  • 2x USB 3.2 Gen 2 (Type-A, red)

  • 4x USB 3.2 Gen 1

  • 4x USB 2.0

• Internal:

  • USB 3.2 Gen 2x2 (Type-C header)

  • 2x USB 3.2 Gen 1

  • 4x USB 2.0

Internal Connectors:

• 2x 8-pin + 1x 24-pin power connectors

• CPU/System fan headers (incl. water cooling pump support)

• RGB/ARGB headers

• Front panel, audio, HDMI, TPM, Q-Flash Plus, power/reset buttons

• Noise detection and temp sensor headers

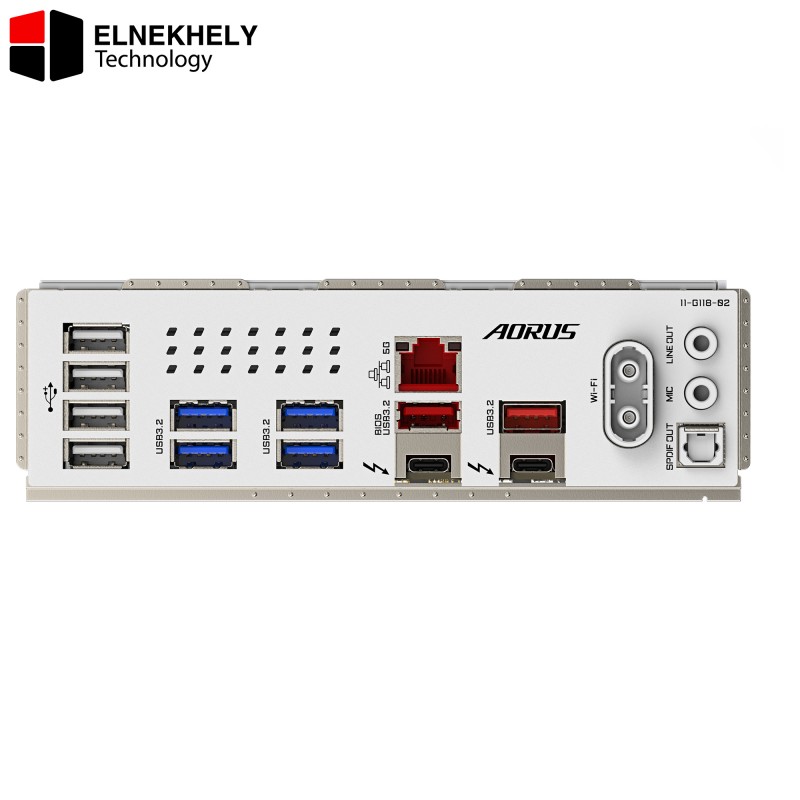

Back Panel:

• 4x USB 2.0, 4x USB 3.2 Gen 1

• 2x USB 3.2 Gen 2 (Type-A, red)

• 2x Thunderbolt™ 4 (USB-C)

• 1x RJ-45 LAN port

• 2x Wi-Fi antenna connectors

• Optical S/PDIF and 2x audio jacks

Other Features:

• iTE® I/O controller

• Fan, voltage, temp, and noise monitoring

• Q-Flash & Q-Flash Plus

• GIGABYTE Control Center (GCC)

• Bundled Norton Internet Security (OEM)

Operating System Support:

• Windows 11 64-bit only

Form Factor:

• ATX (30.5 cm x 24.4 cm)
