- Stock: In Stock
- Brand: MSI
- Model: B850M GAING PLUS WIFI
- SKU: 911-7E66-001
- UPC: 824142425442
- EAN: 4711377347570
- JAN: 4526541060021

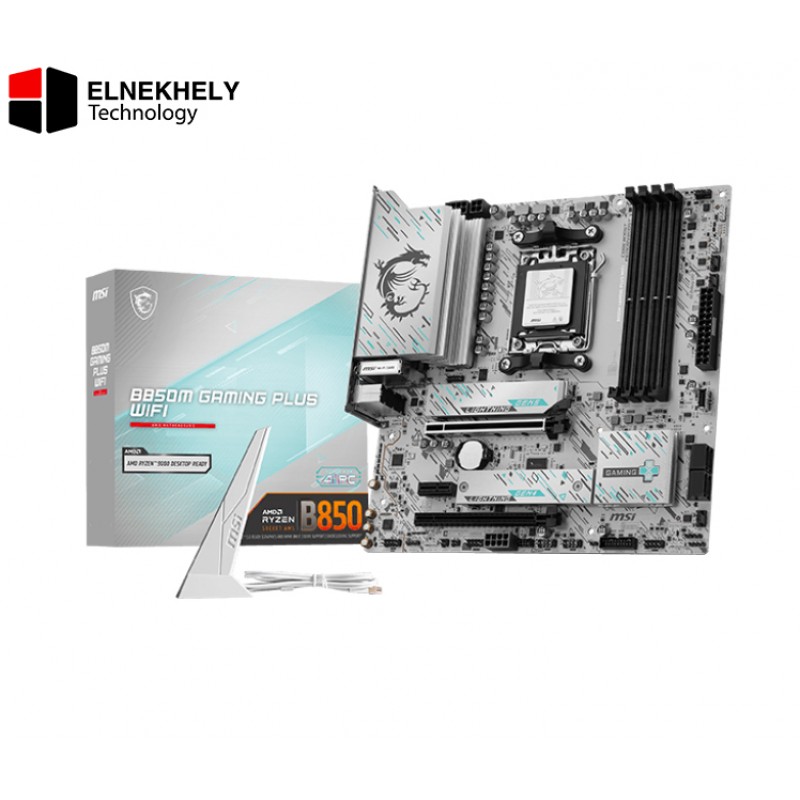

MSI Gaming Plus B850M WIFI Motherboard
Supercharge your gaming build with next-gen speed and unparalleled connectivity using the MSI Gaming Plus B850M WIFI motherboard. Designed for the AMD Socket AM5, it flawlessly accommodates AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors. This high-value micro-ATX board features incredible memory scalability, handling up to 256GB of DDR5 memory overclocked at a hyper-fast 8200+(OC) MT/s with AMD EXPO optimization. Break bandwidth limits with a premium PCIe 5.0 x16 slot for next-gen GPUs and a high-speed PCIe 5.0 x4 M.2 NVMe slot for lightning-fast storage. Armed with bleeding-edge Realtek 5G LAN and built-in Wi-Fi 7 reaching speeds up to 2.9Gbps. Outfitted with heavy-duty cooling elements, an intuitive Flash BIOS setup, and multi-channel High-Definition audio. Available at El-Nekhely Technology.
Elite 5G Networking, Hyper DDR5 Speed & Future PCIe 5.0
- Next-Gen Wi-Fi 7 & 5G LAN Combo: Blazing fast network speeds with integrated Wi-Fi 7 (up to 2.9Gbps over 6GHz) and a high-end Realtek 5G Ethernet port for completely lag-free competitive gaming.
- Full PCIe 5.0 Bandwidth Protection: Houses a future-ready PCIe 5.0 x16 graphics slot alongside a primary M.2 Gen5 x4 slot to exploit maximum solid-state read/write cycles.
- Extreme 8200+ MT/s Memory Clock: Fully optimized DDR5 tracing with AMD EXPO profile support, accommodating high-speed enthusiast RAM kits and CUDIMM clock bypass modes.
- Fast 10Gbps Type-C Interface: Expansive USB connectivity array including dual 10Gbps Type-C ports on the back panel and a high-speed front panel Type-C expansion header.
- EZ Debug & Flash BIOS Safety: Simplify diagnostics with built-in EZ Debug LEDs and safely recover or update your software setup utilizing the standalone Flash BIOS Button.
Certified Technical Specifications
| Feature | Technical Specification |
|---|---|
| Model / Part Number | MSI Gaming Plus B850M WIFI | 911-7E66-001 |
| CPU Socket | AMD Socket AM5 (Ryzen 9000 / 8000 / 7000 Series Support) |
| Chipset Architecture | AMD B850 Chipset |
| Memory Support | 4x DDR5 UDIMM (Up to 256GB) | Supports 8200+(OC) MT/s & AMD EXPO |
| Display Interfaces | 1x HDMI 2.1 (4K@60Hz) | 1x DisplayPort 1.4 (4K@60Hz) |
| Audio System | Realtek® ALC897 7.1-Channel High Definition Audio |
| Wired LAN Ethernet | Realtek® 8126 5G LAN Chip (5 Gbps Wired Network Interface) |
| Wireless Technology | Pre-installed Wi-Fi 7 Solution (Up to 2.9Gbps on 2.4/5/6GHz) + Bluetooth 5.4 |
| PCI-E Expansion Slots | 1x PCIe 5.0 x16 (CPU) | 1x PCIe 4.0 x4 (Chipset) | 1x PCIe 3.0 x1 (Chipset) |
| M.2 & Storage Layout | 1x M.2 PCIe 5.0 x4 slot | 1x M.2 PCIe 4.0 x4 slot | 4x SATA 6G Ports |
| RAID Configurations | M.2 NVMe RAID 0, 1 | SATA Hard Drive RAID 0, 1, 10 |
| Rear Panel IO Hub | 2x USB 10Gbps Type-C, 3x USB 10Gbps Type-A, 3x USB 5Gbps, Clear CMOS & Flash BIOS Button |
| Form Factor / Warranty | micro-ATX Form Factor (24.4cm x 24.4cm) | 3 Years Official Local Warranty |
