- Stock: In Stock
- Brand: Cooler Master
- Model: MPX-7503-AFAG-2EBEU

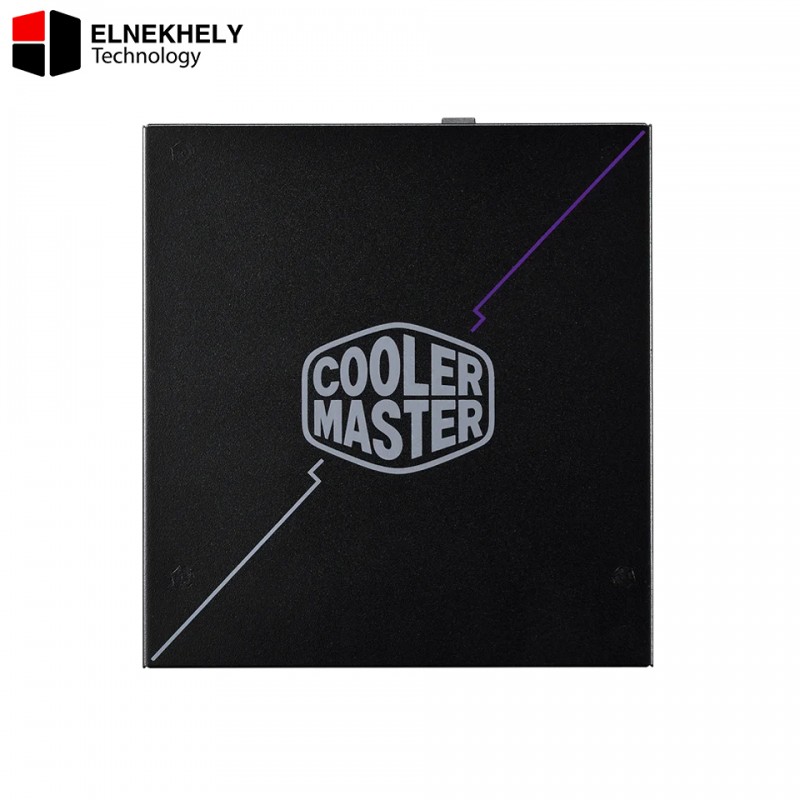

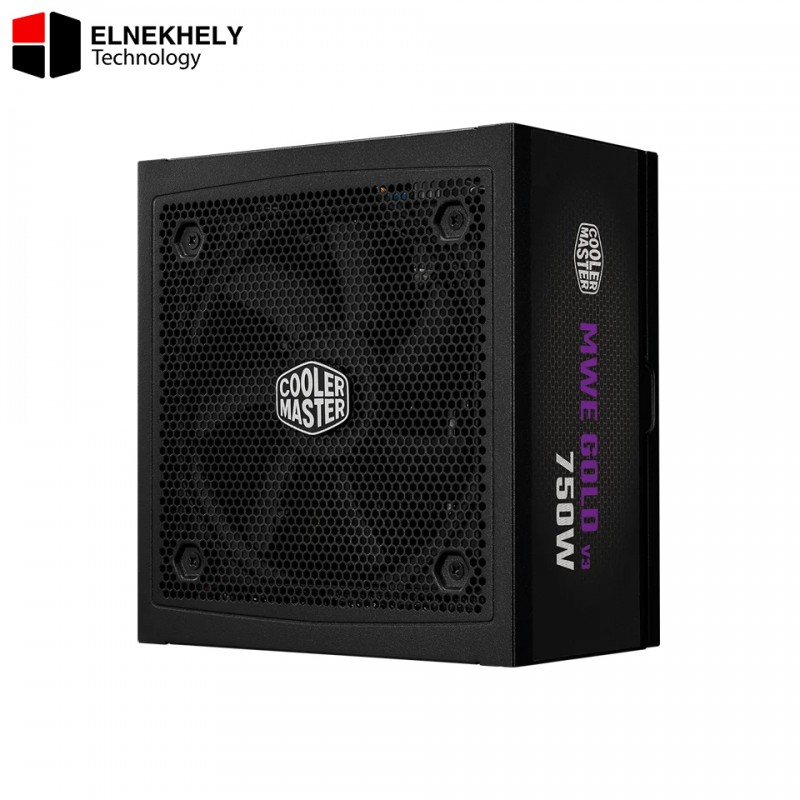

Cooler Master MWE Gold 750W V3 ATX 3.1 Fully Modular Power Supply
Power your next-generation gaming rig with the Cooler Master MWE Gold 750W V3 Full Modular power supply (MPX-7503-AFAG-2). Built to the latest ATX 3.1 specifications, it features a dedicated 90-degree 12V-2x6 (PCIe 5.1) cable designed for high electrical durability, reduced operating temperatures, and enhanced safety for modern high-end graphics cards. Boasting 80 PLUS Gold certified efficiency (>90% efficiency at typical loads), this PSU incorporates separated thermal technologies alongside premium Japanese capacitors for reduced ripple noise and rock-solid reliability. A 120mm HDB fan equipped with Zero-RPM mode guarantees ultra-quiet performance during light operations, while fully modular black flat cabling optimizes internal chassis airflow and management. Available at El-Nekhely Technology.
Key Features
- ATX 3.1 Standard & 12V-2x6 Connector: Native compliance with ATX 3.1 standards featuring a durable 90-degree 12V-2x6 power connector for seamless PCIe 5.1 GPU compatibility.
- 80 PLUS Gold Certified Efficiency: Guarantees over 90% energy efficiency under typical loads, reducing electricity consumption, wasted heat, and operational noise.
- High-Quality Japanese Capacitor: Engineered with premium Japanese primary capacitors ensuring superior hold-up times, lower electrical ripple, and long-term stability.
- 120mm HDB Fan with Zero-RPM Mode: Dynamic Hydraulic Bearing (HDB) fan provides silent cooling performance and shuts off completely during light workloads.
- Fully Modular Flat Cabling: Plug only the cables you need to streamline cable routing, improve case aesthetics, and maximize overall internal airflow.
- Comprehensive Industrial Circuit Protection: Full suite of heavy-duty protections including OVP, OPP, SCP, OCP, UVP, OTP, and Surge & Inrush protection.
Detailed Specifications
| Feature | Technical Specification |
|---|---|
| Brand / Part Model | Cooler Master / MPX-7503-AFAG-2 |
| Series & Type | MWE Gold V3 Series | ATX 12V Ver. 3.1 |
| Total Wattage | 750 Watts Continuous Power |
| Efficiency Rating | 80 PLUS Gold Certified (≥90% @ Typical Load) |
| Cabling Type | Fully Modular |

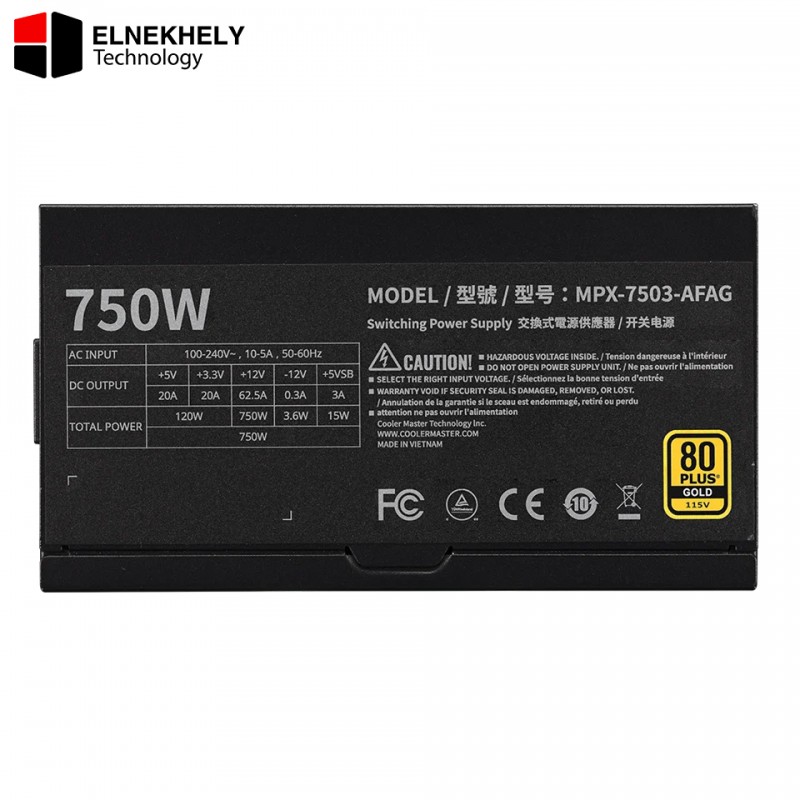

| Input Voltage & Current | 100-240V AC | 10-5A | 50-60Hz (Active PFC) |

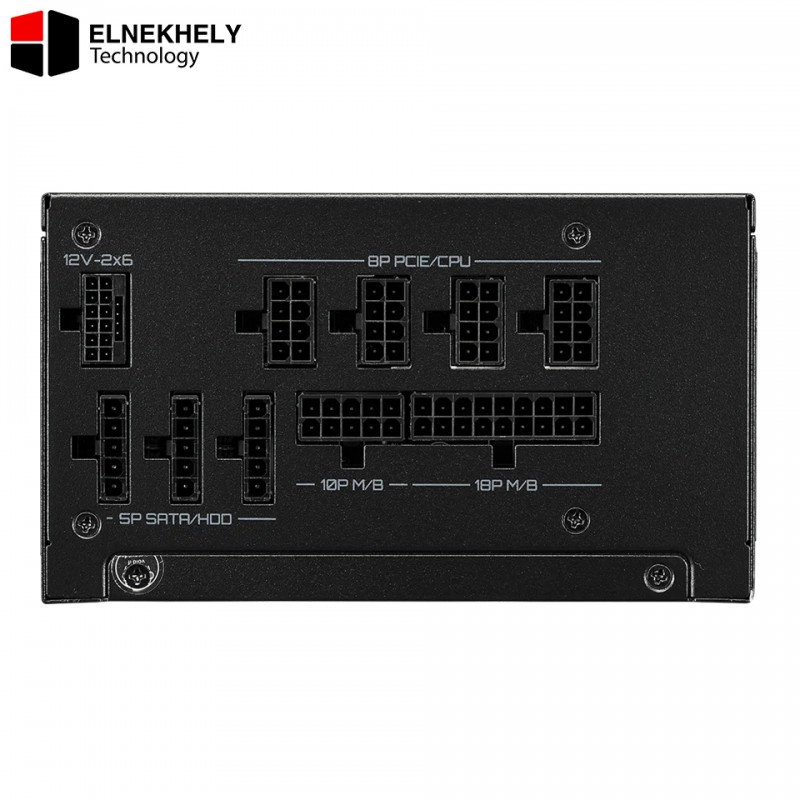

| Native GPU Cable | 1 x 12V-2x6 (PCIe 5.1 12+4 Pin) 90-Degree Cable |
| PCI-e & CPU Connectors | 4 x PCIe 6+2 Pin | 1 x EPS 8-Pin | 1 x EPS 4+4 Pin |
| SATA & Peripheral Connectors | 6 x SATA Connectors | 2 x 4-Pin Peripheral |

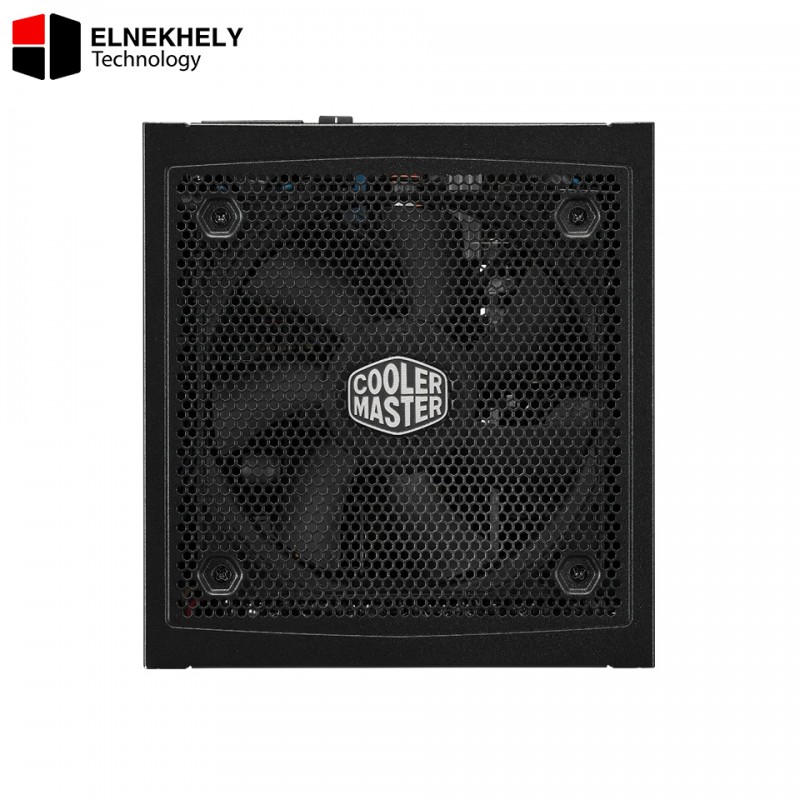

| Cooling Fan | 120mm HDB (Hydraulic Bearing) Fan | 2500 RPM Max |
| Thermal & Quiet Features | Separated Thermal Design | Zero-RPM Fan Mode |
| Power Protection | OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush |
| Hold Up Time & MTBF | ≥16ms at 80% Load | >100,000 Hours MTBF |
| Dimensions (L x W x H) | 160 x 150 x 86 mm (Standard ATX) |
