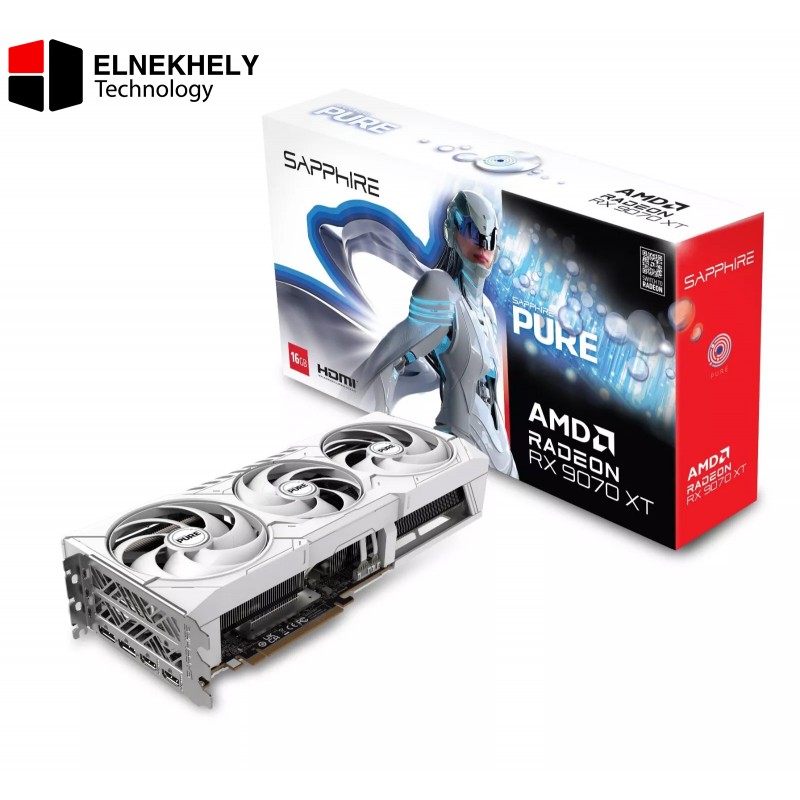

SAPPHIRE PURE AMD Radeon™ RX 9070 XT GPU – 16GB GDDR6, 20 Gbps, Boost Clock Up to 3010 MHz, 4096 Stream Processors, AMD RDNA™ 4 Architecture, and 64 Ray Accelerators for Unmatched Gaming Performance

General Specifications

GPU Model: AMD Radeon™ RX 9070 XT
Architecture: AMD RDNA™ 4 Architecture

Clock Speeds

Boost Clock: Up to 3010 MHz
Maximum frequency achievable under optimal conditions. Actual performance may vary based on thermal conditions and workload.

Game Clock: Up to 2460 MHz
Expected clock speed during typical gaming workloads at standard TGP (Total Graphics Power).

Compute Units & Stream Processors

Stream Processors: 4096
Compute Units (CUs): 64 CUs
Includes 3rd Gen Ray Tracing Accelerators and 2nd Gen AI Accelerators

Memory

Memory Size / Bus: 16GB / 256-bit GDDR6
Memory Clock: 20 Gbps (Effective)
Infinity Cache: 64MB

Ray Tracing & AI Features

Ray Accelerators: 64
AI Accelerators: 128

Display Outputs

Maximum Displays Supported: 4

Resolution Support:

• HDMI®: 7680×4320 (8K)

• DisplayPort™ 2.1a: 7680×4320 (8K)

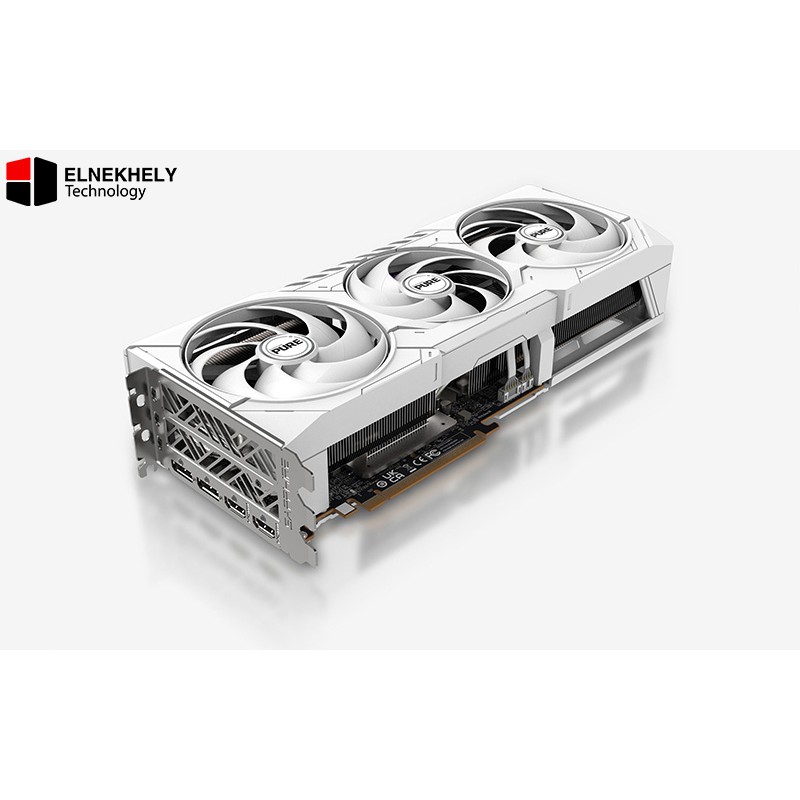

Ports:

• 2x HDMI®

• 2x DisplayPort™ 2.1a

Interface

PCI Express: PCI-Express 5.0 x16

BIOS Support

BIOS: UEFI

AMD Technologies

• AMD RDNA™ 4 Architecture: Delivers high performance and efficiency

• AMD HYPR-RX with AFMF 2: Reduces input lag and improves responsiveness

• AMD FidelityFX™ Super Resolution 4 (FSR 4): AI Upscaling for improved visuals and performance

• AMD Radiance Display™ Engine: Supports ultra-high resolutions and color depth

• AMD Fluid Motion Frames 2: Enhances frame generation for smoother gameplay

• AMD Radeon™ Anti-Lag 2: Minimizes input delay

• AV1 Encode/Decode: Efficient, next-gen video encoding and decoding

• AMD FidelityFX™ Technologies: Includes VRS, CAS, and other visual enhancements

• Microsoft® DirectX® 12 Ultimate: Supports ray tracing, mesh shaders, etc.

• AMD Noise Suppression: Reduces microphone background noise

• AMD FreeSync™ Technology: Tear-free and stutter-free gaming

Cooling Solution

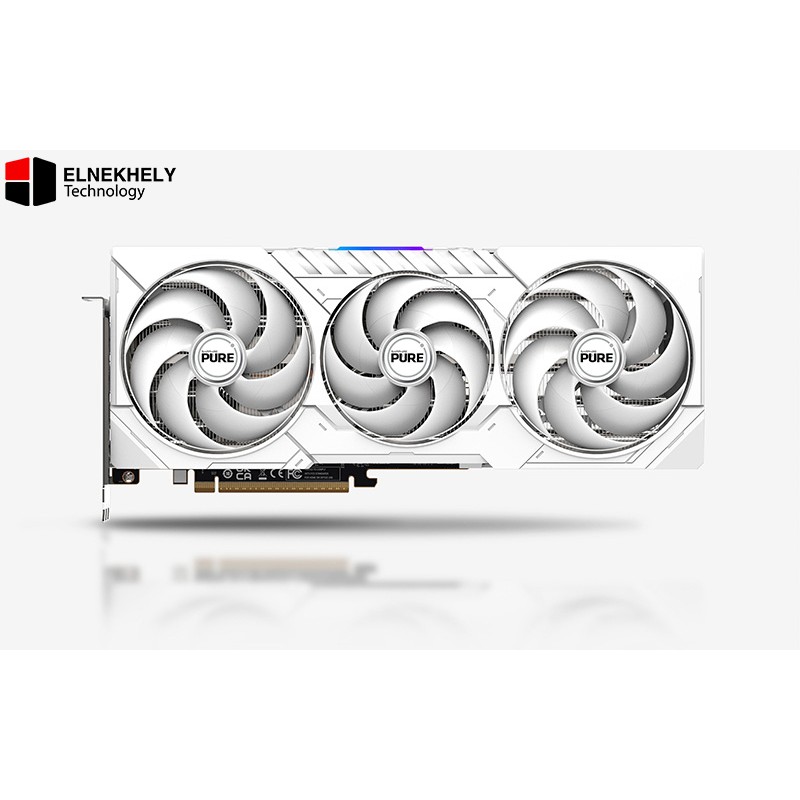

Cooler Type: Tri-X Cooling Technology

Key Features:

• AeroCurve Fan Blades

• Free Flow Design

• Integrated Cooling Module

• High TG Copper PCB

• Optimized Composite Heatpipes

• Two-Ball Bearing Fans

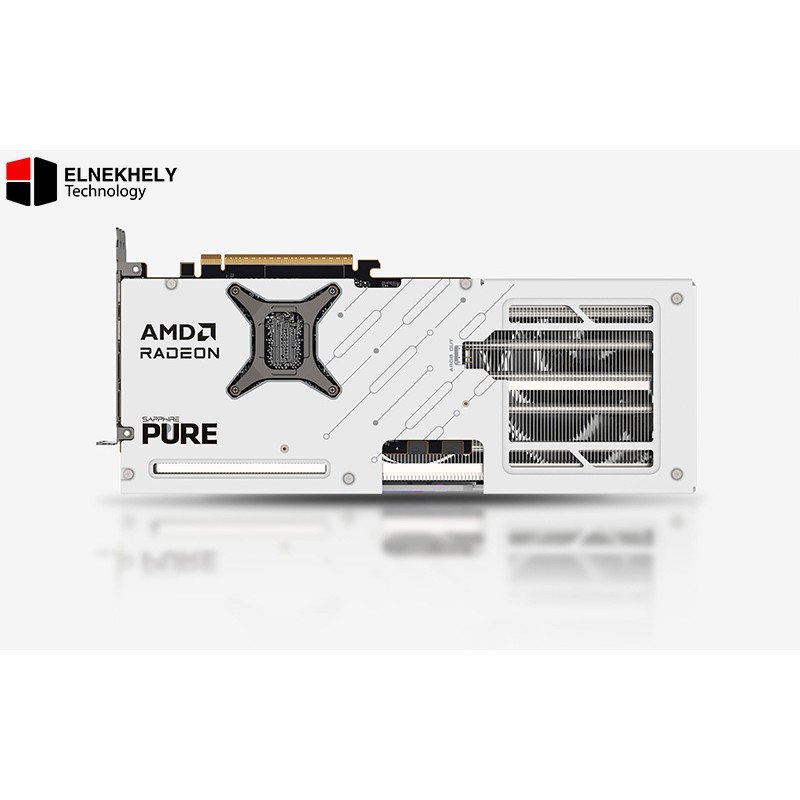

• Metal Backplate with ARGB SAPPHIRE Logo

Performance Features

• Gaming Performance: Designed for 4K gaming with high efficiency

• Precision Fan Control & Intelligent Fan Control: Smart cooling with noise optimization

• Fuse Protection: Electrical safeguard

• 14-Phase Digital Power Design: Stable and reliable power delivery

Sapphire Exclusive Features

• Honeywell PTM7950 TIM: Premium thermal interface material for improved cooling

• TriXX Boost: Performance tuning with easy presets

• L-Shape Support Bracket: Reinforced GPU structural support

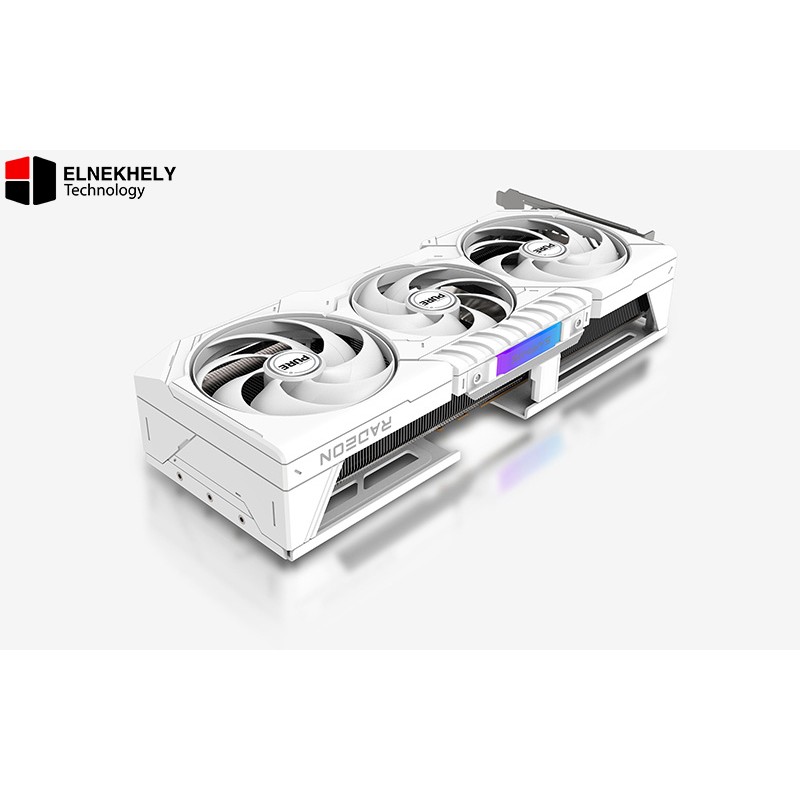

• ARGB SAPPHIRE Logo: Syncs with motherboard RGB headers for customization

Form Factor

Type: ATX
Dimensions:

• Length: 320 mm

• Width: 120.25 mm

• Height: 61.6 mm
  Slot Occupancy: 3 slots

Power Consumption

Typical Board Power: 317W
Power Connector:

• 2 x 8-pin PCIe Power Connectors
  Recommended PSU: Minimum 750W

System Requirements

Operating System:

• Linux®

• Windows® 10 & 11 (64-bit required)

Minimum System Memory: 8GB (16GB Recommended)
PCIe Slot Requirement: 1 x PCIe x16 lane on the motherboard
