Xigmatek Osiris E-ATX ATX Mid Tower PC Case, Steel Chassis, 360mm Radiator Support, Vertical GPU, High Airflow, Back Plug Compatible

Xigmatek Osiris

Specification

Product Name: Osiris
Dimensions: 465 × 238 × 481 mm (L × W × H)

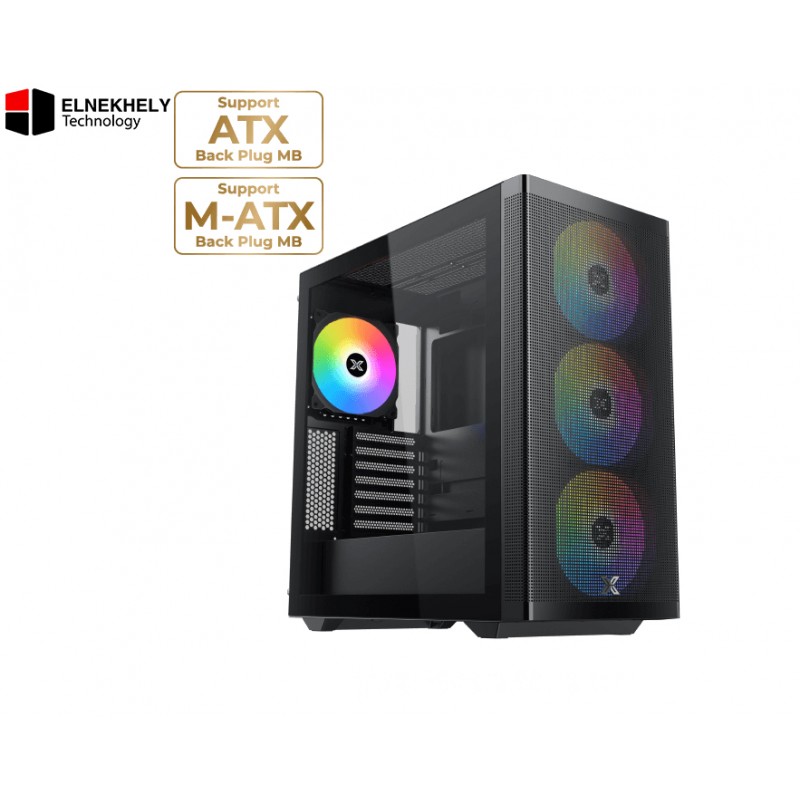

Motherboard Support: E-ATX / ATX (Back Plug Support) / Micro-ATX (Back Plug Support) / Mini-ITX
Drive Bays:

• HDD Cage: 3.5″ ×2 & 2.5″ ×1

• SSD Bracket: 2.5″ ×2

Cooling & Fan Support:

• Front: 3 × 120mm or 3 × 140mm

• Motherboard Side: 2 × 120mm (E-ATX width ≤28.5 cm)

• Top: 3 × 120mm or 2 × 140mm

• PSU Shroud: 2 × 120mm

• Rear: 1 × 120mm or 1 × 140mm

Radiator Support:

• Front: 240 / 280 / 360 mm

• Motherboard Side: 240 mm (E-ATX width ≤28.5 cm)

• Top: 240 / 280 / 360 mm

• Rear: 120 mm

Clearances & Limits:

• GPU Length: Up to 285 mm (with MB fan) / 400 mm (without MB fan)

• CPU Cooler Height: Up to 180 mm

• PSU Length: Up to 220 mm

Other Features:

• Material: Steel

• Power Supply: Standard PS2 ATX PSU

• Expansion Slots: 7 standard, supports vertical GPU installation (90°)

• I/O Panel: 1 × USB 3.0, 2 × USB 2.0, HD Audio
