- Stock: In Stock
- Brand: Cooler Master
- Model: MLY-D36M-A24PZ-R1
- SKU: 4719512146507

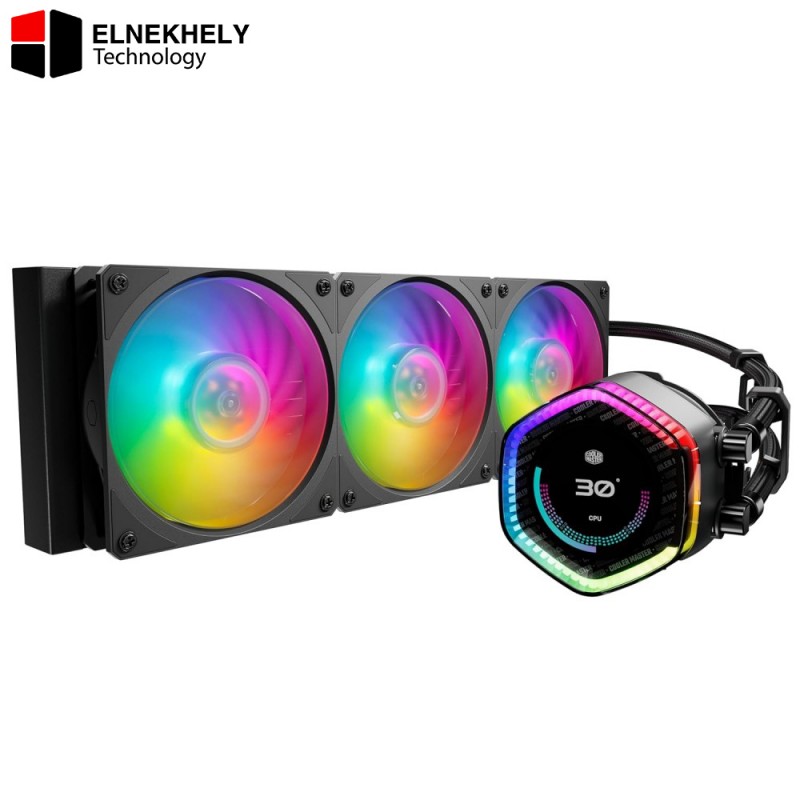

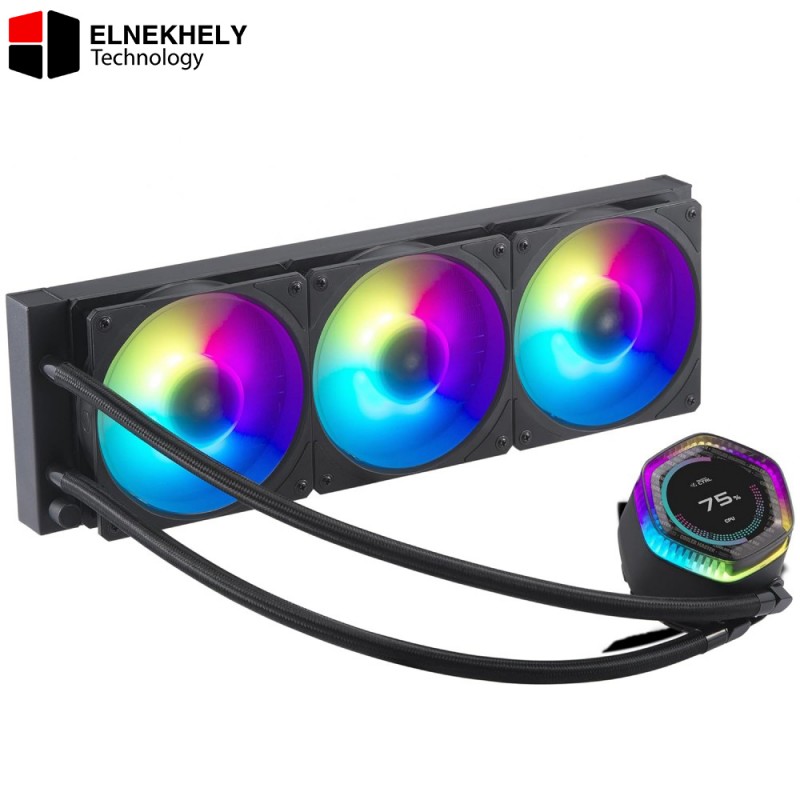

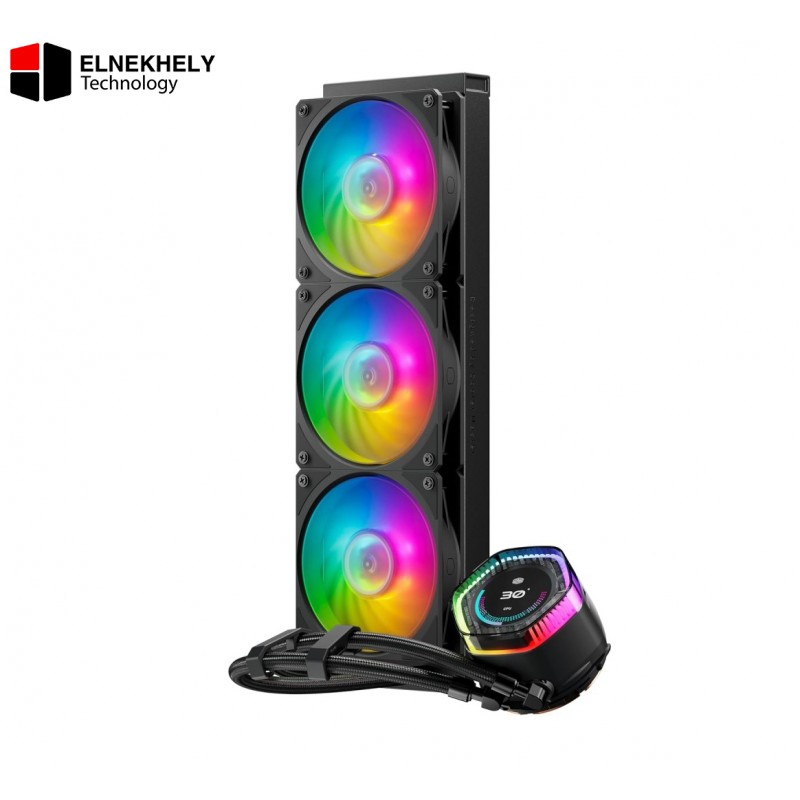

CUSTOMIZABLE LCD DISPLAY - MOBIUS 120P ARGB FANS - INTEL LGA 1851 & AMD AM5 READYCooler Master MasterLiquid 360 ION ARGB Black Liquid CPU Cooler
Redefine CPU cooling acoustics and system aesthetics with the flagship Cooler Master MasterLiquid 360 ION ARGB Black Liquid CPU Cooler. Designed around an iconic pump enclosure featuring a customizable display screen, this premium AIO system delivers extreme heat dissipation powered by three ultra-high-performance Mobius 120P ARGB fans. Engineered with Loop Dynamic Bearings, the fans reach speeds up to 2400 RPM, producing a massive 75.2 CFM airflow and an exceptional 3.63 mmH2O static pressure through the 394mm aluminum radiator. Operating with an ultra-quiet pump rated at just 20 dB(A), it combines high-tier thermal performance with whisper-quiet operation. Broadly compatible with modern sockets including Intel LGA 1851 / 1700 / 1200 / 115X and AMD AM5 / AM4 platforms. Available at El-Nekhely Technology.
Customizable Pump Display, Mobius 120P ARGB Fans & Extreme 3.63 mmH2O Static Pressure
- High-Performance Mobius 120P Fans: Includes 3x Mobius 120P ARGB fans generating up to 75.2 CFM airflow and a class-leading 3.63 mmH2O static pressure.

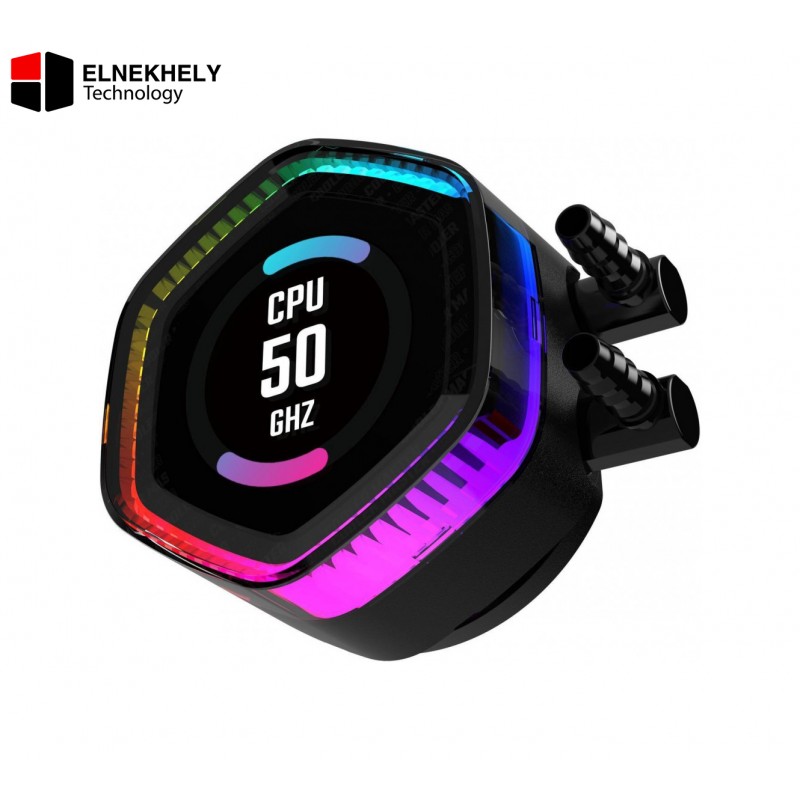

- Customizable Pump Display Enclosure: Integrated LCD screen on the water block allows personalized telemetry monitoring, images, and animations.
- Ultra-Quiet Pump Architecture: Redesigned low-vibration pump unit produces an imperceptible 20 dB(A) sound output during intensive operation.
- Loop Dynamic Bearing Technology: Fan bearings designed for oil recirculation and dust resistance, extending total operational lifespan.
- Next-Gen Sockets Supported: Full out-of-the-box support for modern high-performance platforms including Intel LGA 1851 / 1700 and AMD AM5 / AM4.
Certified Technical Specifications
| Feature | Technical Specification |
|---|---|
| Brand / Series | Cooler Master | MasterLiquid ION Series |
| Model Specifics | MasterLiquid 360 ION ARGB Black |
| Cooler Type | All-In-One Liquid Cooling System |
| Pump Dimensions | 88.3 x 83.6 x 65.7 mm Structural Form |
| Pump Acoustic Noise | 20 dB(A) Ultra-Quiet Rating |
| Radiator Dimensions | 394 x 119.6 x 27.2 mm Standard 360mm Form |
| Radiator Material | High-Density Industrial Aluminum |
| Included Radiator Fans | 3 x Mobius 120P ARGB (120mm) |
| Fan Dimensions | 120 x 120 x 25 mm (Per Fan Unit) |
| Fan Speed Range | 0 — 2400 RPM +/- 10% PWM Control |
| Fan Bearing Type | Loop Dynamic Bearing (LDB) |
| Max Fan Airflow Output | 75.2 CFM (127.6 m³/h) Peak Output |
| Max Static Air Pressure | 3.63 mmH2O High-Pressure Rating |
| Fan Operational Noise Level | 30 dB(A) Max Volume Output |
| Fan Power Connection | 4-Pin PWM Digital Connector |
| Exterior Color Finish | Matte Black Finish |
| Intel Socket Compatibility | LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 |
| AMD Socket Compatibility | Socket AM5 / Socket AM4 Compatible |
| Package Contents | MasterLiquid 360 ION, 3x Mobius 120P Fans, Intel/AMD Brackets, Tools |
