ASUS ROG STRIX Z890-A GAMING WIFI Z890 LGA 1851 ATX motherboard, Intel® Core™ Ultra Series 2 Ready, Advanced AI PC-ready, 16+2+1+2 stages, DDR5, WiFi 7, 2.5G, 5x M.2, Thunderbolt™ 4, USB Type-C, AI OC

ROG STRIX Z890-A GAMING WIFI Specifications
Processor & Chipset:

• Supports Intel® Core™ Ultra Processors (Series 2) with Intel® Turbo Boost 2.0 & 3.0.

• Intel® Z890 Chipset for high-performance gaming and overclocking.

Memory:

• 4 x DIMM slots, supports up to 256GB DDR5 memory.

• Overclocking speeds up to 9066+ MT/s (OC).

• Supports Intel® XMP, DIMM Flex, DIMM FIT, and ASUS AEMP III for optimized memory tuning.

Graphics & Display:

• 1 x DisplayPort 1.4 (supports 8K@60Hz).

• 1 x HDMI 2.1 (supports 4K@60Hz).

• 2 x Thunderbolt™ 4 ports supporting DisplayPort and Thunderbolt™ video output.

Expansion Slots:

• 1 x PCIe 5.0 x16 slot (for GPUs and high-speed devices).

• 1 x PCIe 4.0 x16 slot (supports x4 mode).

Storage:

• 5 x M.2 slots and 4 x SATA 6Gb/s ports.

• M.2_1 (PCIe 5.0 x4), M.2_2, M.2_3, M.2_4, and M.2_5 (PCIe 4.0 x4/SATA).

• Supports Intel® RAID 0/1/5/10 for M.2 and SATA storage.

Networking & Connectivity:

• Intel® 2.5Gb Ethernet with ASUS LANGuard protection.

• Wi-Fi 7 (2x2) + Bluetooth 5.4, supporting speeds up to 5.8Gbps.

USB Ports:

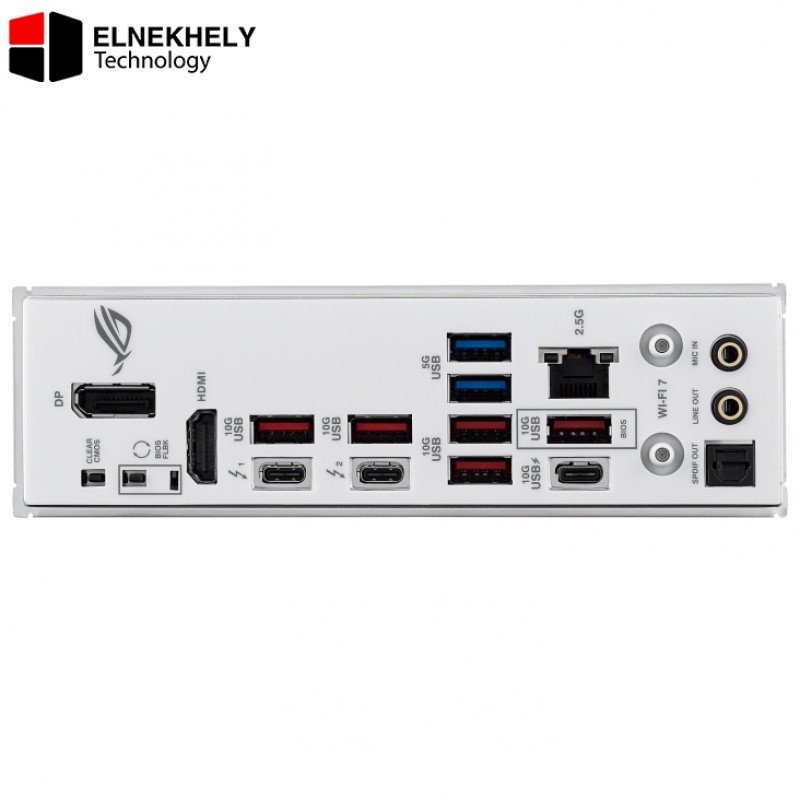

• Rear I/O: 10 USB ports, including:

• 2 x Thunderbolt™ 4 (USB-C).

• 6 x USB 10Gbps (5 x Type-A + 1 x Type-C with 30W fast charging).

• 2 x USB 5Gbps (Type-A).

• Front I/O: 7 USB ports, including:

• 1 x USB 20Gbps (Type-C).

• 1 x USB 5Gbps header (supports 2 additional ports).

• 2 x USB 2.0 headers (supports 4 additional ports).

Audio:

• ROG SupremeFX 7.1 Surround Sound (ALC4080 CODEC).

• Supports up to 32-bit/384 kHz playback.

• Premium capacitors, shielding, and Savitech SV3H712 AMP for high-quality audio.

Cooling & Thermal Design:

• 1 x 4-pin CPU fan header, 1 x CPU OPT fan header, 1 x AIO pump header, 5 x chassis fan headers.

• M.2 heatsinks and backplate for improved cooling.

• AI Cooling II and Fan Xpert 4 for smart cooling control.

Special Features:

• ASUS Q-Design: M.2 Q-Latch, Q-Release, Q-DIMM, Q-LED indicators.

• BIOS FlashBack™ & Clear CMOS buttons for easy troubleshooting.

• AI Overclocking & AI Advisor for system optimization.

• Aura Sync RGB with Addressable Gen 2 headers for lighting customization.

Form Factor & Compatibility:

• ATX Form Factor (30.5 x 24.4 cm).

• Supports Windows 11 (22H2 & later).
