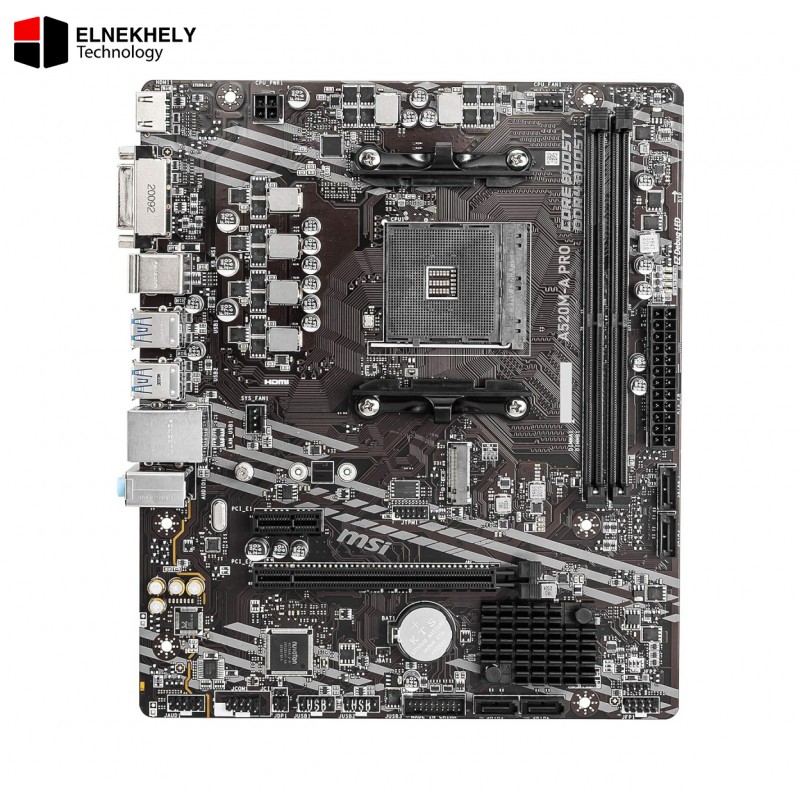

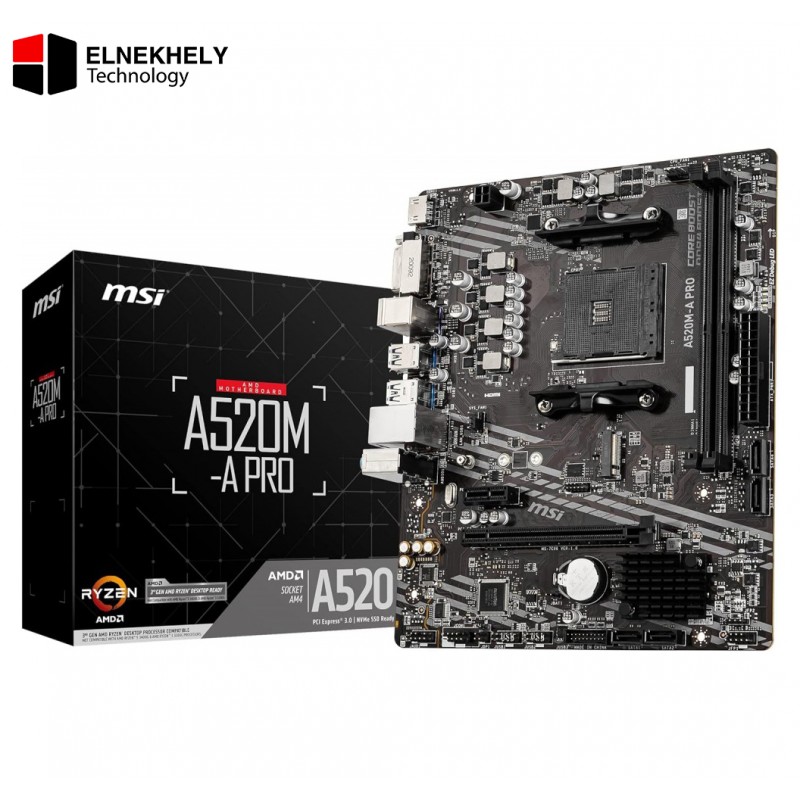

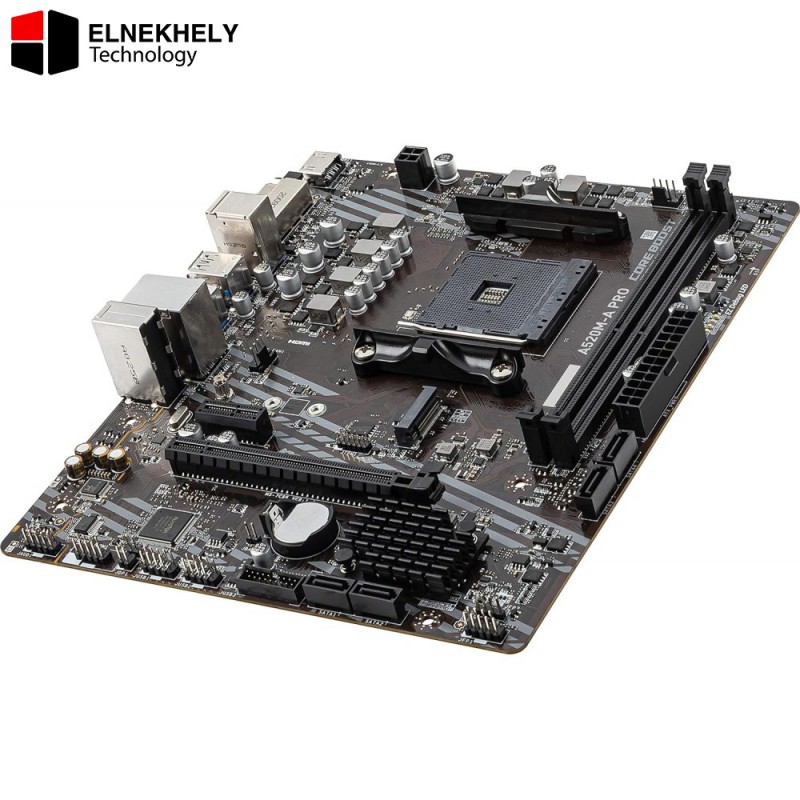

MSI A520M-A PRO Micro-ATX Motherboard - AMD Socket AM4, DDR4 4600+MHz (OC), M.2 NVMe, USB 3.2 Gen 1, HDMI 2.1

Build a stable, high-value desktop PC with the MSI A520M-A PRO Micro-ATX Motherboard. Designed to support 3rd Gen AMD Ryzen and Ryzen 4000 G-Series desktop processors on the AM4 socket, this motherboard provides a solid foundation for home, office, and budget gaming builds. Featuring 2 x DDR4 DIMM slots supporting up to 64GB of memory at overclocked speeds reaching 4600+ MHz via A-XMP profiles, it delivers fast memory performance. Storage versatility is guaranteed with a high-speed Turbo M.2 slot supporting PCIe 3.0 NVMe SSDs alongside 4 x SATA 6Gb/s ports with RAID support. Complete with Realtek 7.1 HD Audio, Gigabit LAN, HDMI 2.1 output for 4K 60Hz displays, and USB 3.2 Gen 1 connectivity. Available at El-Nekhely Technology.

Key Features

AMD AM4 Socket Support: Compatible with 3rd Gen AMD Ryzen Desktop Processors and Ryzen 4000 G-Series APUs.
High-Speed Dual-Channel DDR4: 2 DIMM slots supporting up to 64GB RAM with A-XMP OC MODE speeds up to 4600+ MHz.
Turbo M.2 NVMe Slot: High-speed M.2 slot running at PCIe Gen3 x4 maximizes performance for NVMe-based SSDs.
Core Boost & DDR4 Boost: Premium layout and digital power design to support more cores and provide better overall system stability.
4K Display & Dual Output: Features HDMI 2.1 port supporting 4K resolution at 60Hz and DVI-D port for versatile multi-display setups.
Audio Boost & Gigabit LAN: Integrated Realtek ALC892 7.1-channel HD Audio codec and Realtek RTL8111H Gigabit network adapter.

Detailed Specifications

Feature	Technical Specification
Brand / Model Code	MSI / A520M-A PRO
CPU Socket & Chipset	AMD Socket AM4 \| AMD A520 Chipset
Supported Processors	3rd Gen AMD Ryzen & Ryzen 4000 G-Series Desktop CPUs
Form Factor	Micro-ATX (9.3 in x 7.9 in)
Memory Capacity & Type	2 x DDR4 DIMM Slots \| Up to 64GB Dual-Channel
Memory Speed (OC/JEDEC)	Up to 4600+ MHz (A-XMP OC) \| 3200 MHz Native
Expansion Slots	1 x PCIe 3.0 x16 Slot \| 1 x PCIe 3.0 x1 Slot
M.2 Storage Slot	1 x M.2 Slot (Key M, PCIe 3.0 / SATA, 2242/2260/2280)
SATA Storage Ports	4 x SATA 6Gb/s Ports (Supports RAID 0, RAID 1, RAID 10)

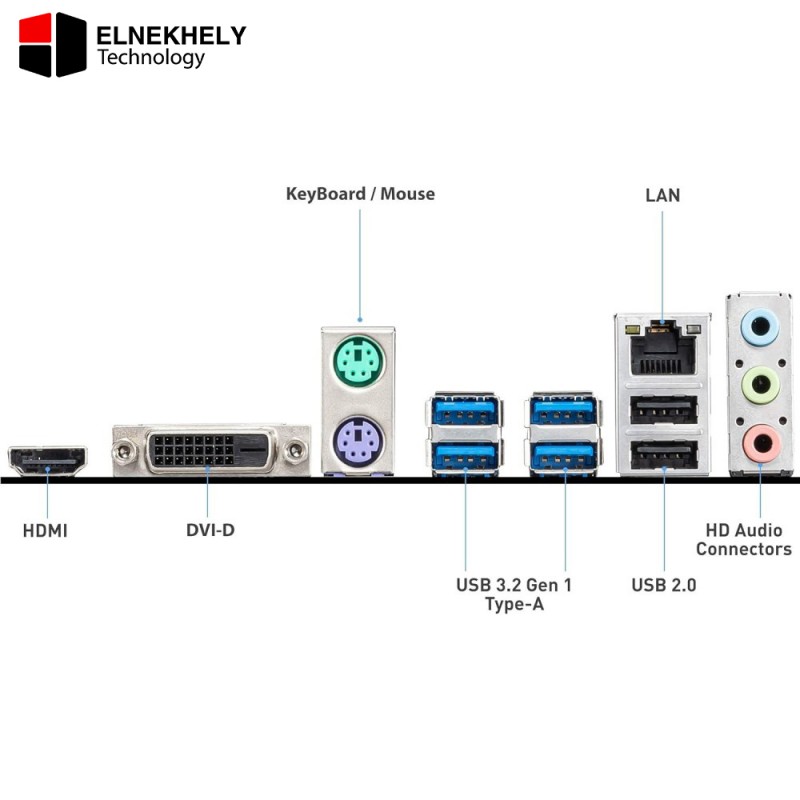

Display Outputs	1 x HDMI 2.1 (4K @60Hz) \| 1 x DVI-D
USB Rear Connectors	4 x USB 3.2 Gen 1 (5Gbps) Type-A \| 2 x USB 2.0
USB Front Headers	1 x USB 3.2 Gen 1 Header (2 ports) \| 2 x USB 2.0 Headers (4 ports)
Networking (LAN)	Realtek RTL8111H Gigabit LAN (10/100/1000 Mbps)
Audio System	Realtek ALC892 7.1-Channel High Definition Audio
Power Connectors	1 x 24-pin ATX Main Power \| 1 x 4-pin ATX 12V Power
