- Stock: In Stock
- Brand: MSI
- Model: MPG X870E CARBON MAX WIFI
- SKU: 911-7E49-001

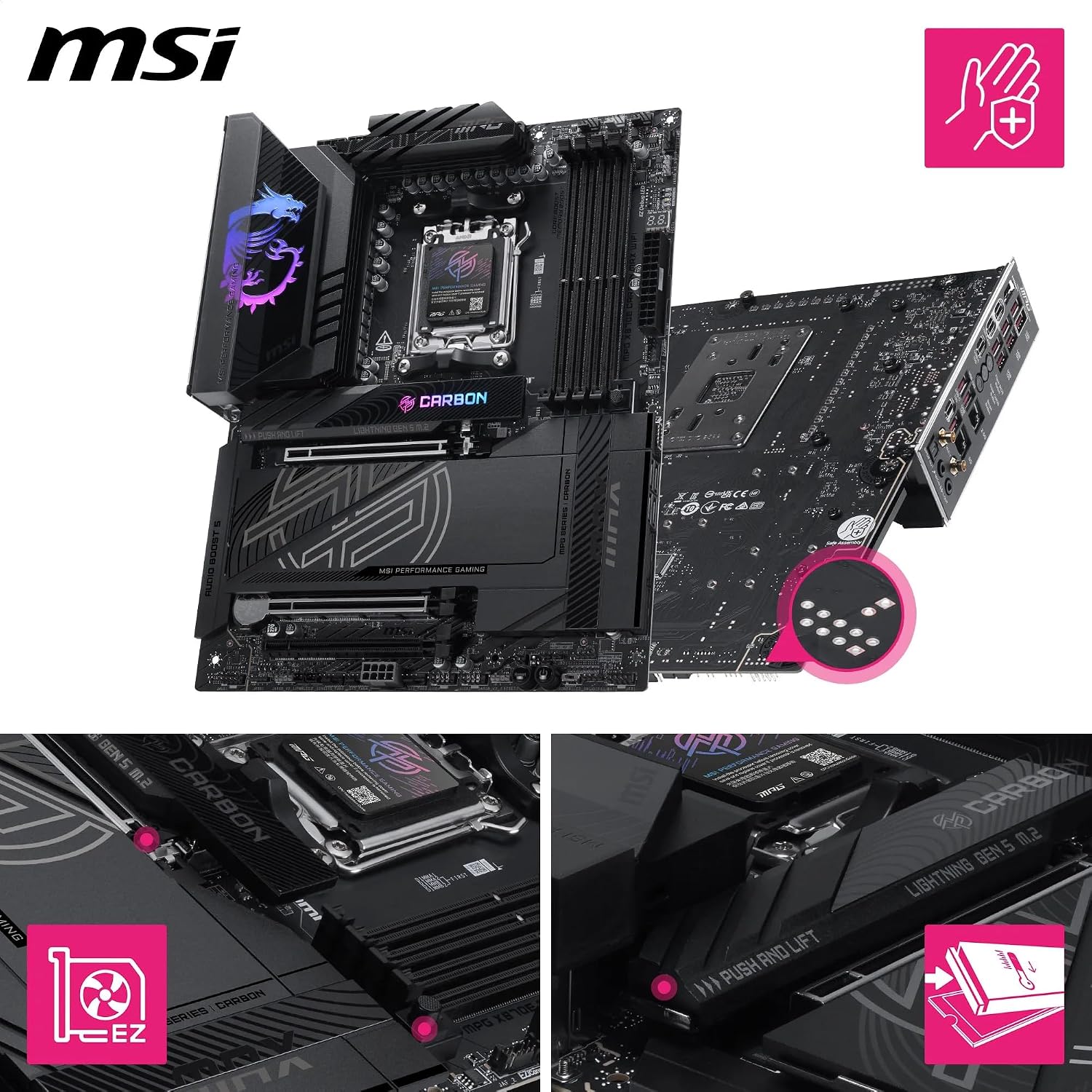

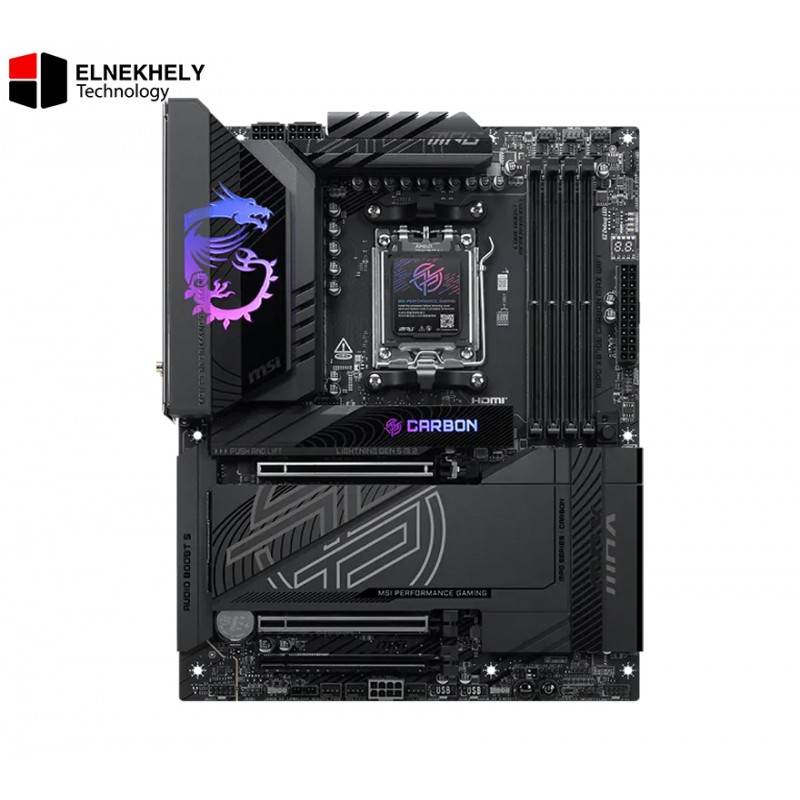

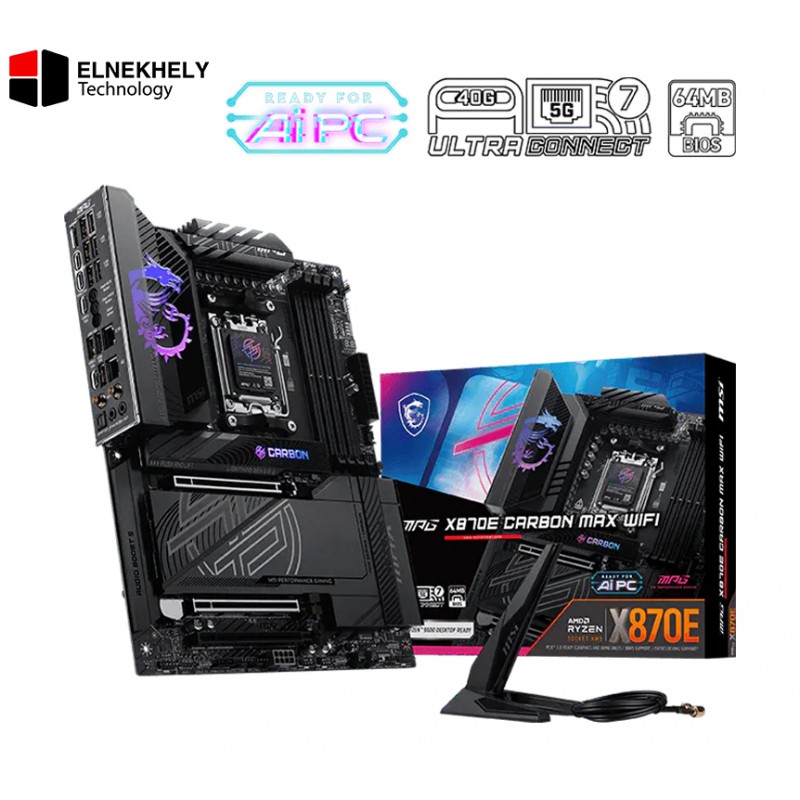

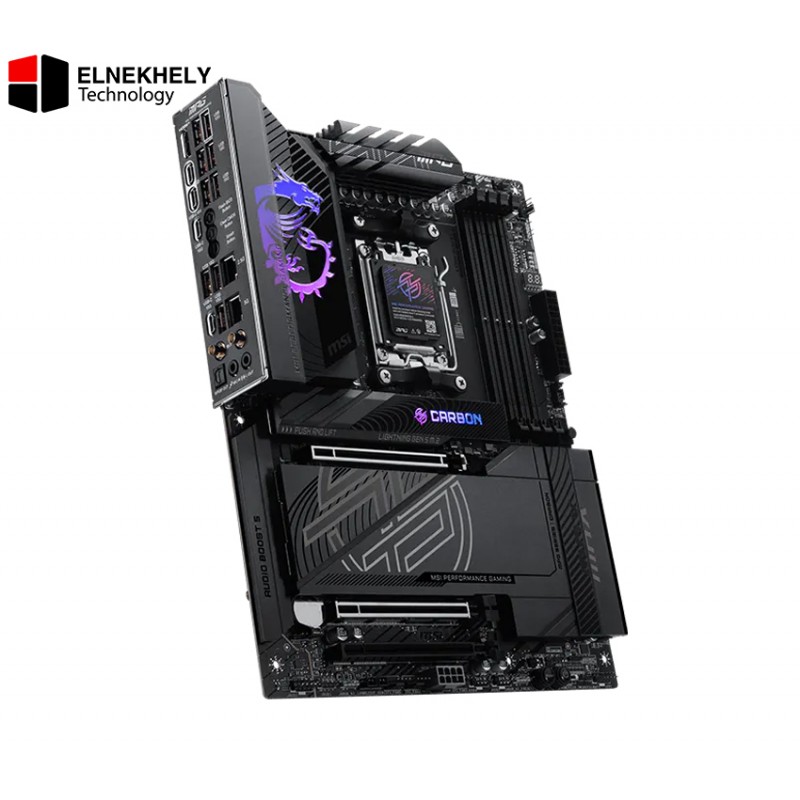

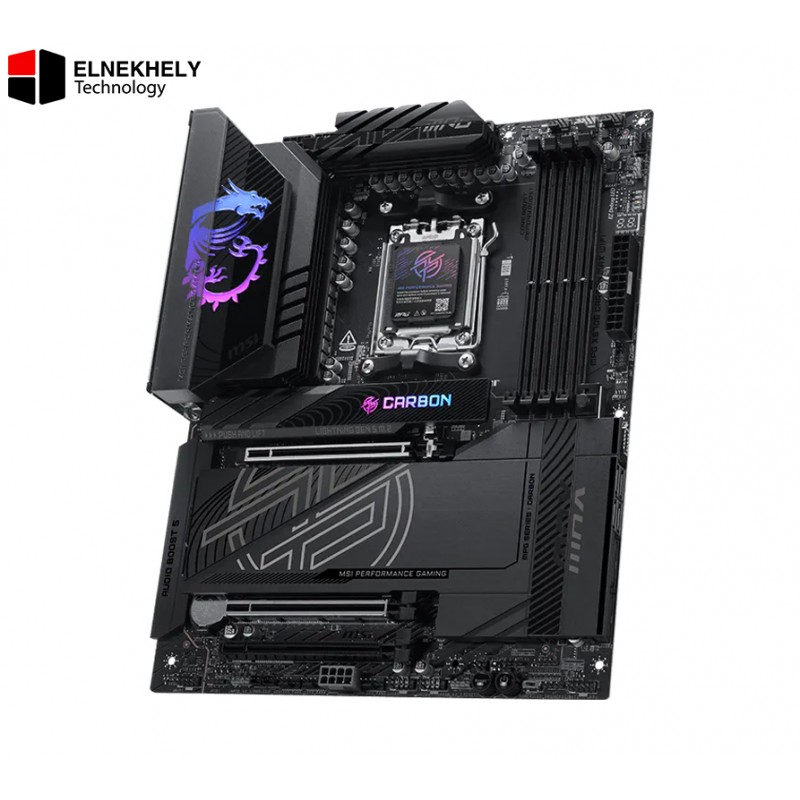

FLAGSHIP X870E AM5 MOTHERBOARDMSI MPG X870E Carbon WiFi AM5 ATX Gaming Motherboard – DDR5, PCIe 5.0, Wi-Fi 7, Dual USB4
Power your next-generation setup with the MSI MPG X870E Carbon WiFi AM5 ATX Motherboard. Designed for AMD Ryzen 9000, 8000, and 7000 Series processors, this high-performance board features a robust 110A Smart Power Stage (SPS) VRM layout to ensure maximum CPU overclocking stability and power delivery. Supporting up to 256GB of DDR5 memory with EXPO speeds reaching 8400+ MT/s, dual PCIe 5.0 x16 expansion slots, and dual PCIe 5.0 M.2 slots, it delivers ultra-fast bandwidth for flagship GPUs and NVMe storage. Stay connected with ultra-high-speed Wi-Fi 7, dual Ethernet (5G + 2.5G LAN), and high-bandwidth dual 40Gbps USB4 Type-C ports. Built with heavy plated heatpipes and sleek carbon aesthetics, it provides top-tier thermal cooling and stability for high-end gaming and heavy workstation tasks. Available at El-Nekhely Technology.
Key Features
- Socket AM5 Ready: Full native support for AMD Ryzen 9000, 8000, and 7000 Series desktop processors.
- Extreme Power Delivery: Premium 110A Smart Power Stage (SPS) VRM design ensures smooth power delivery under intense multi-core computational loads and heavy overclocking.
- DDR5 Memory Boost (8400+ MT/s OC): 4x DDR5 UDIMM slots supporting up to 256GB with AMD EXPO profile support for supreme memory performance.

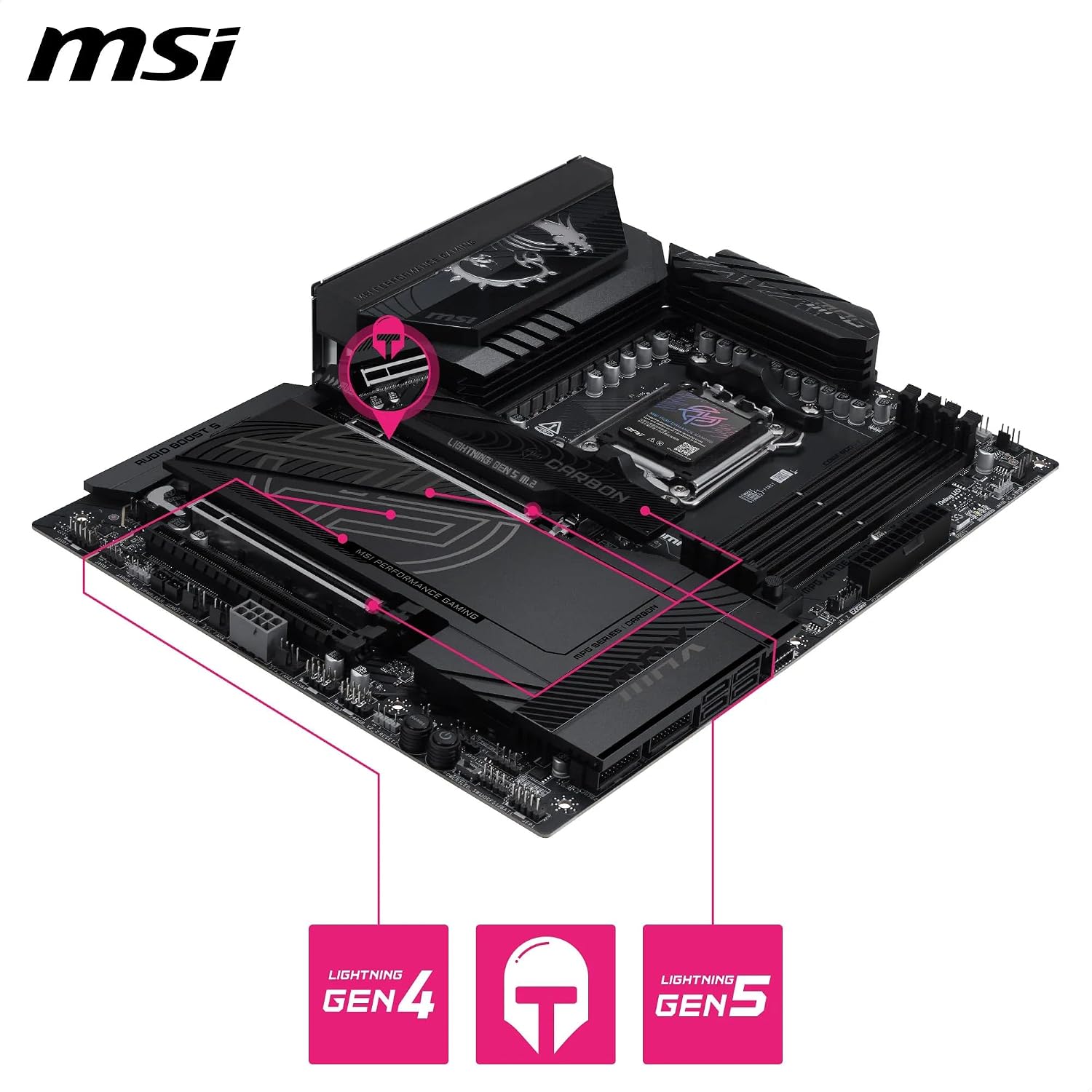

- Next-Gen Storage & Expansion: Dual PCIe 5.0 x16 slots paired with 4x M.2 slots (2x PCIe 5.0 x4 + 2x PCIe 4.0 x4) for high-speed NVMe drives.
- Ultra-Fast Connectivity: Integrated Wi-Fi 7 (up to 5.8Gbps), Bluetooth 5.4, Realtek 5G LAN + 2.5G LAN, and dual 40Gbps USB4 Type-C back I/O ports.
Detailed Specifications
| Feature | Technical Specification |
|---|---|
| Brand / Series | MSI / MPG Series |
| Model | MPG X870E Carbon WiFi |
| CPU Socket & Chipset | AMD Socket AM5 | AMD X870E Chipset |
| Supported Processors | AMD Ryzen 9000 / 8000 / 7000 Series Desktop CPUs |
| Memory Support | 4x DDR5 UDIMM (Max 256GB) | Dual-Channel | 8400+ MT/s (OC) | AMD EXPO |
| Expansion Slots | 2x PCIe 5.0 x16 slots (supports x16/x0 or x8/x4), 1x PCIe 4.0 x4 slot |
| M.2 Storage Slots | 4x M.2 Slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4) |
| SATA Ports | 4x SATA 6Gb/s |
| Networking (LAN & Wireless) | Realtek 5G LAN + Realtek 2.5G LAN | Wi-Fi 7 (up to 5.8Gbps) | Bluetooth 5.4 |

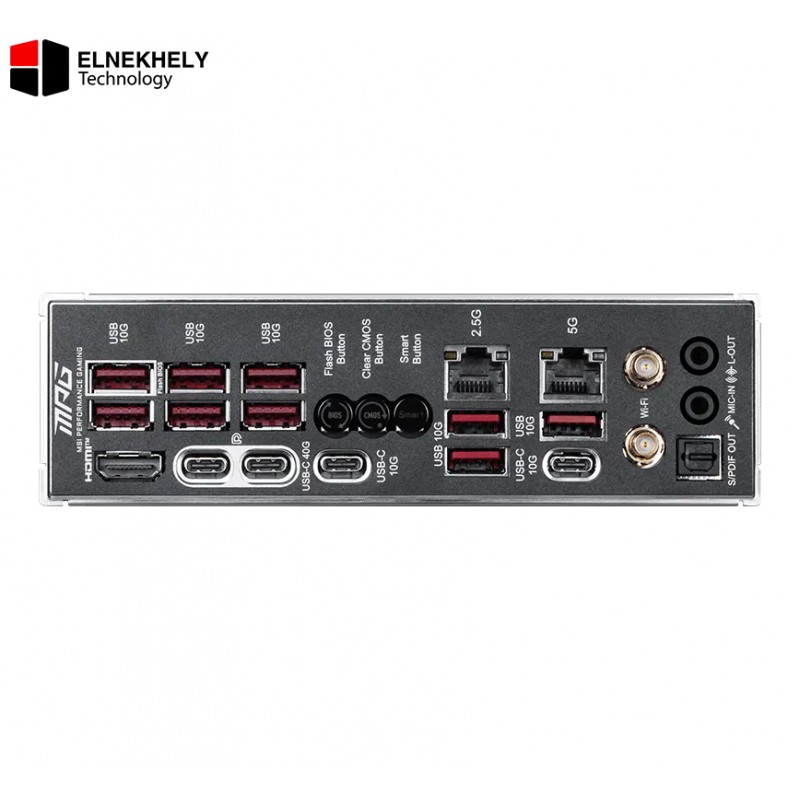

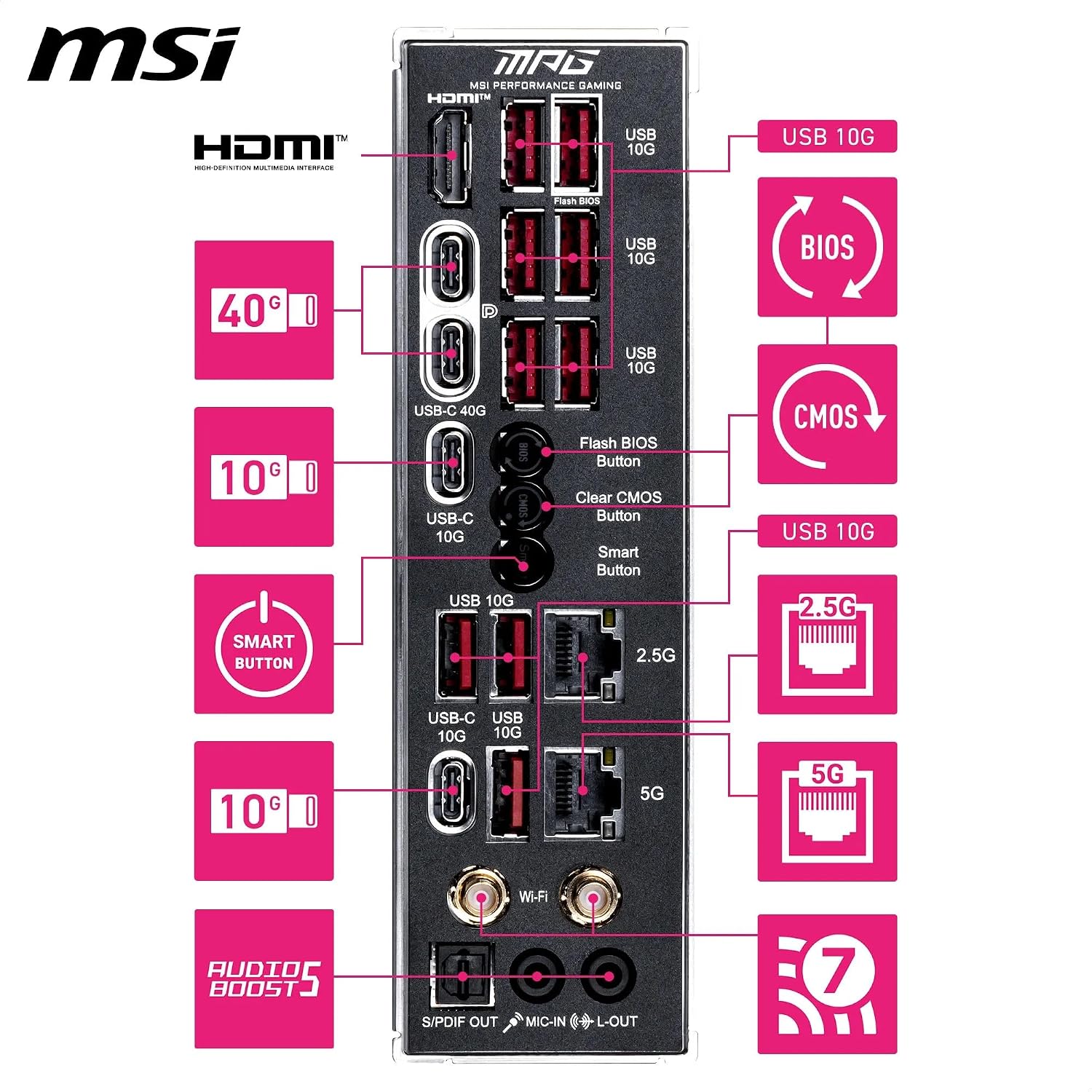

| Rear USB Ports | 2x USB4 40Gbps (Type-C), 2x USB 10Gbps (Type-C), 9x USB 10Gbps (Type-A) |
| Front Panel USB Headers | 1x USB 20Gbps (Type-C), 4x USB 5Gbps (Type-A), 4x USB 2.0 |
| Audio Codec | Realtek ALC4080 Codec, 7.1-Channel High Performance Audio, S/PDIF Output |
| Display Outputs | 1x HDMI 2.1 (8K@60Hz), 2x USB4 Type-C (DP 1.4 4K@60Hz) |
| Form Factor | ATX Form Factor (243.84 mm x 304.8 mm) |
