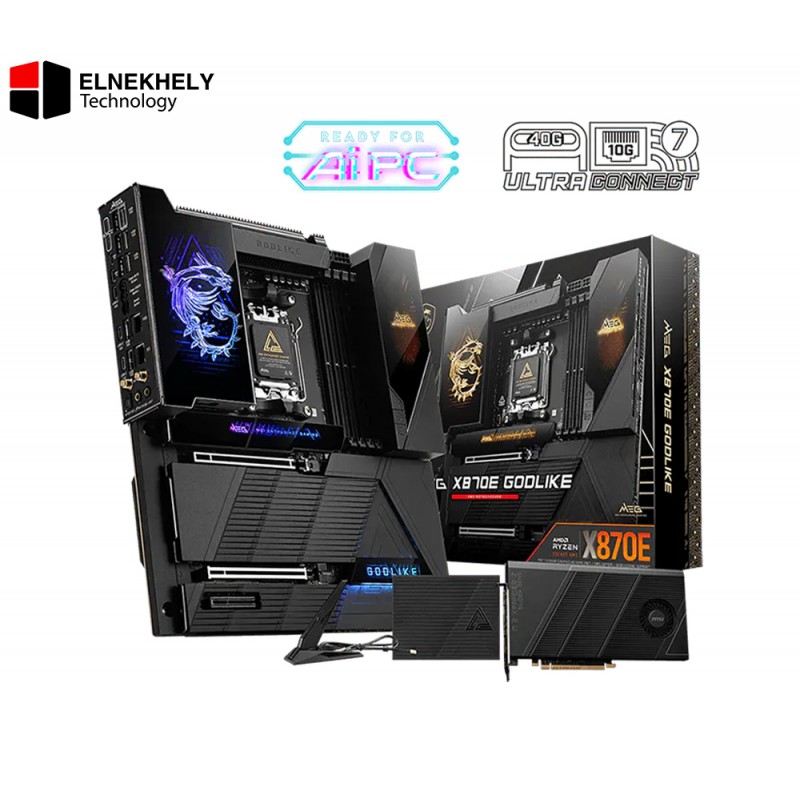

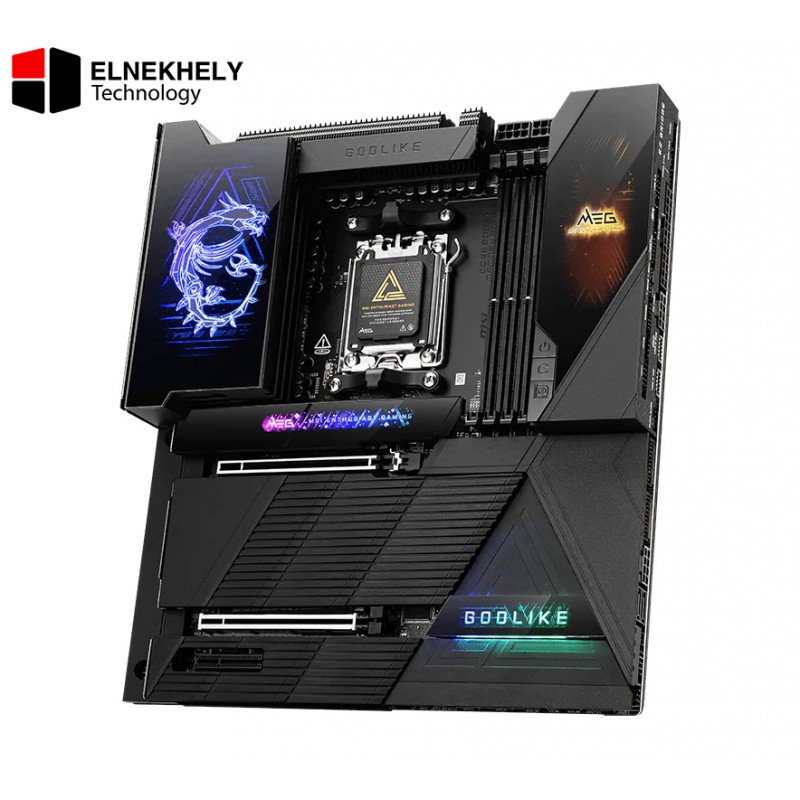

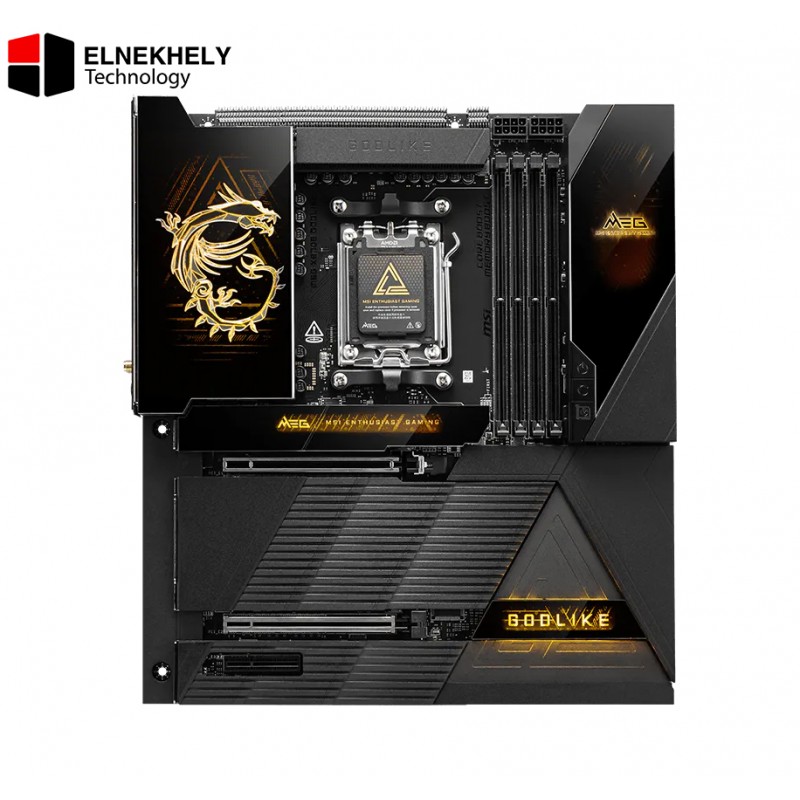

MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
from
56,999 L.E
- Stock: In Stock
- Brand: MSI
- Model: X870E-GODLIKE
Tags:
MSI
, MEG
, GODLIKE
, X870E
, AM5 Motherboard
, E-ATX
, Gaming Motherboard
, DDR5
, PCIe 5.0
, Wi-Fi 7
, 10GbE LAN
, 5GbE LAN
, USB4 40Gbps
, 7x M.2
, ESS DAC
, Dynamic Dashboard
, Ryzen 9000 Ready
, PC Components Egypt
ULTIMATE FLAGSHIP E-ATX GAMING & OVERCLOCKING MOTHERBOARD
MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
Full Product Specifications
| CPU & Chipset | |
|---|---|
| Brand & Series | MSI MEG (GODLIKE Series) |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Form Factor | E-ATX (304.8 mm × 277 mm) |
| Memory Support | |
| Memory Type | DDR5 (4 × UDIMM Slots, Dual-Channel) |
| Max Capacity | Up to 256 GB (64 GB per slot) |
| Supported Speeds | JEDEC: 4800 – 5600 MT/s | Overclocked: Up to 8400+ MT/s (1DPC 1R) / 9200+ MT/s (OC) |
| Features & Profiles | AMD EXPO™, CUDIMM Support (Clock Driver Bypass), Non-ECC Unbuffered |
| Expansion & Storage Interfaces | |
| PCIe Expansion Slots | 2 × PCIe 5.0 x16 (PCI_E1/E2 from CPU) [x16/x0 or x8/x8] + 1 × PCIe 4.0 x4 (PCI_E3 from Chipset) |
| Total M.2 Slots | 7 × M.2 Slots (5 Onboard [2x Gen5 + 3x Gen4] + 2x Gen5 via M.2 XPANDER-Z SLIDER Card) |
| SATA Ports | 4 × SATA 6Gb/s Connectors |
| RAID Support | RAID 0/1/5/10 for NVMe | RAID 0/1/10 for SATA |
| Connectivity & Audio | |

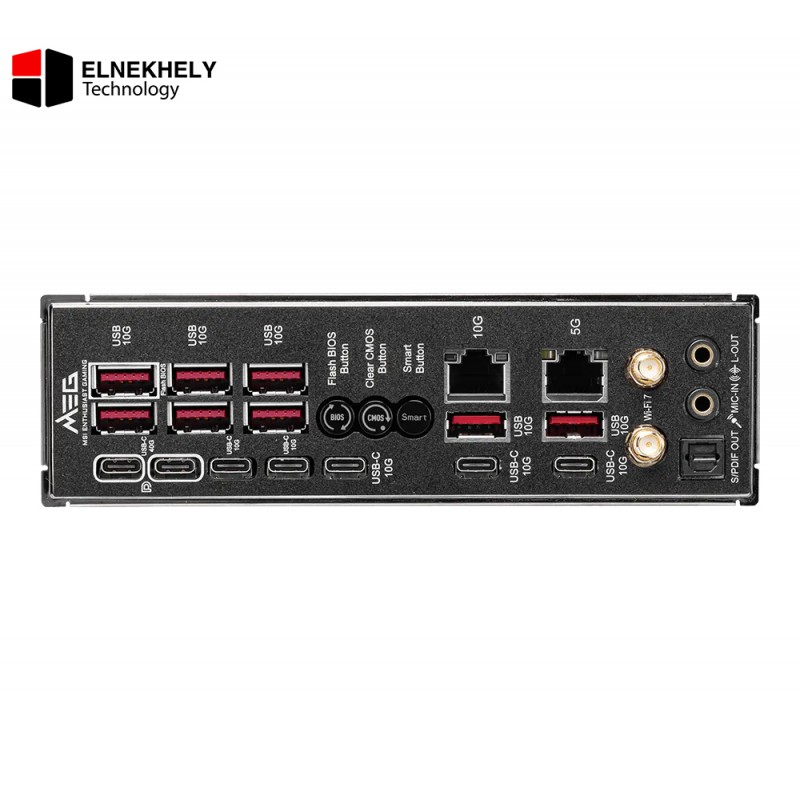

| USB4 Ports | 2 × Rear USB4® Type-C® (40Gbps, DisplayPort 1.4 HBR3, 4K @ 60Hz) |
| Networking & Wireless | Dual Wired LAN (Marvell® 10GbE + Realtek® 5GbE) + Wi-Fi 7 (320MHz, 5.8Gbps) + Bluetooth 5.4 |
| Front Panel Fast Charge | 1 × USB 20Gbps Type-C® Header + 1 × USB 10Gbps Type-C® Header with PD Support |
| Audio CODEC | Realtek® ALC4082 + ESS9219Q Combo DAC/HPA (7.1-Ch, Up to 32-bit/384kHz, S/PDIF Out) |
| Exclusive Onboard Tech | Dynamic Dashboard III, EZ Digi-Debug LED, Smart Button, Clear CMOS & Flash BIOS Buttons |
