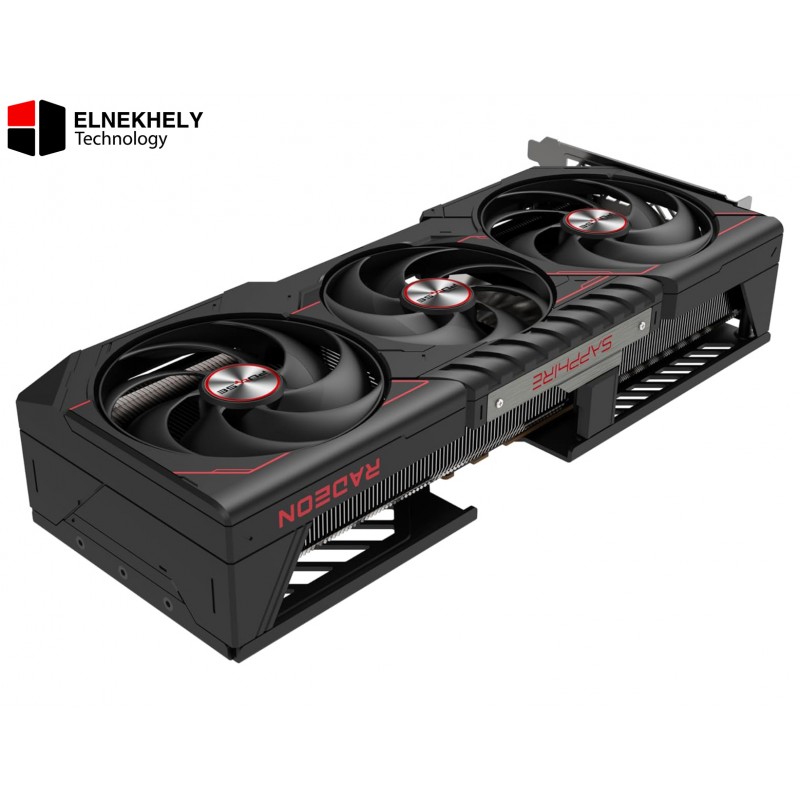

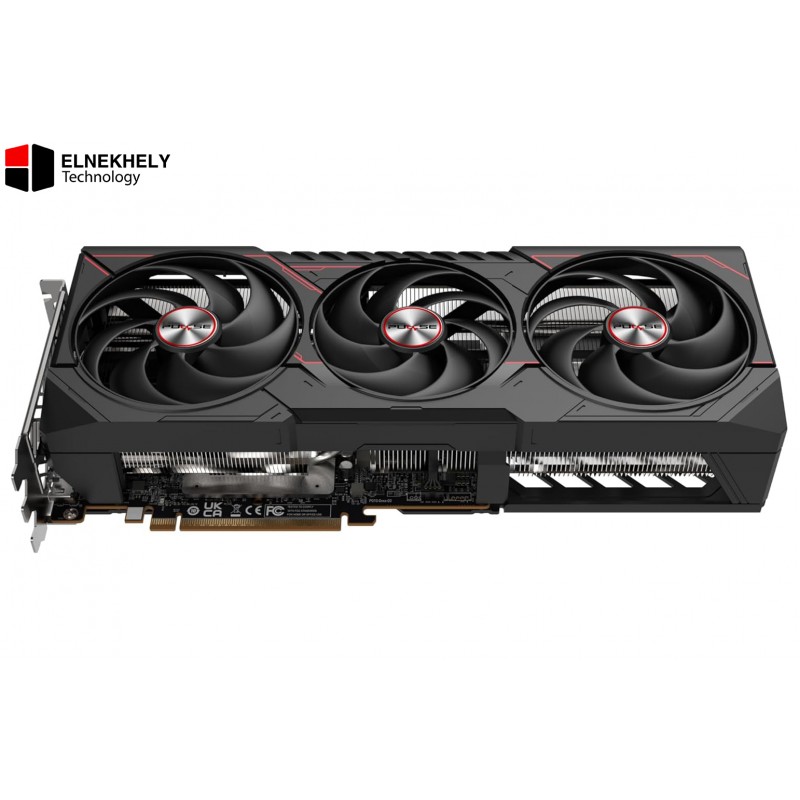

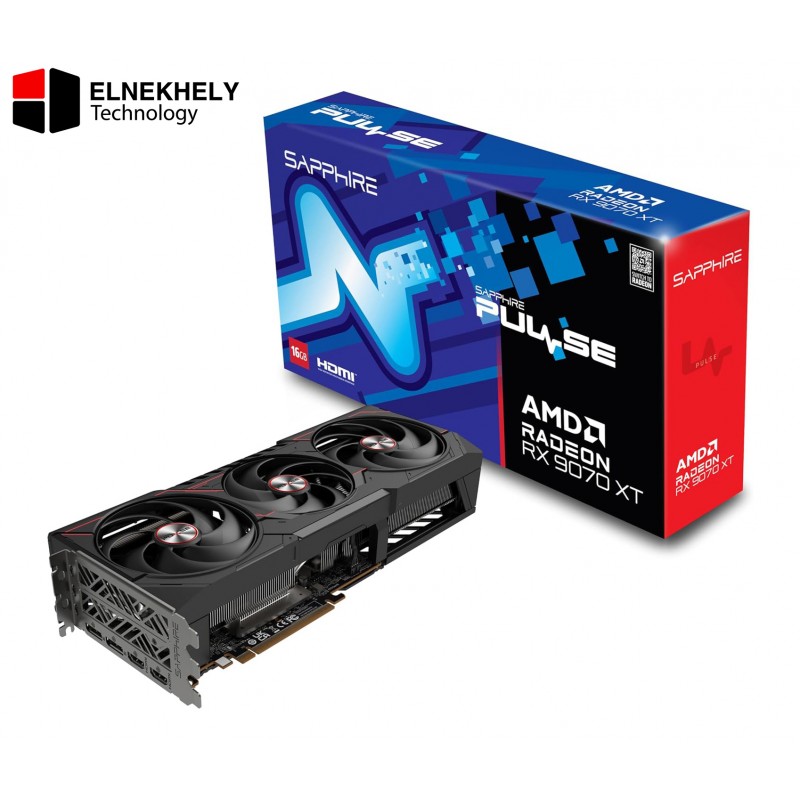

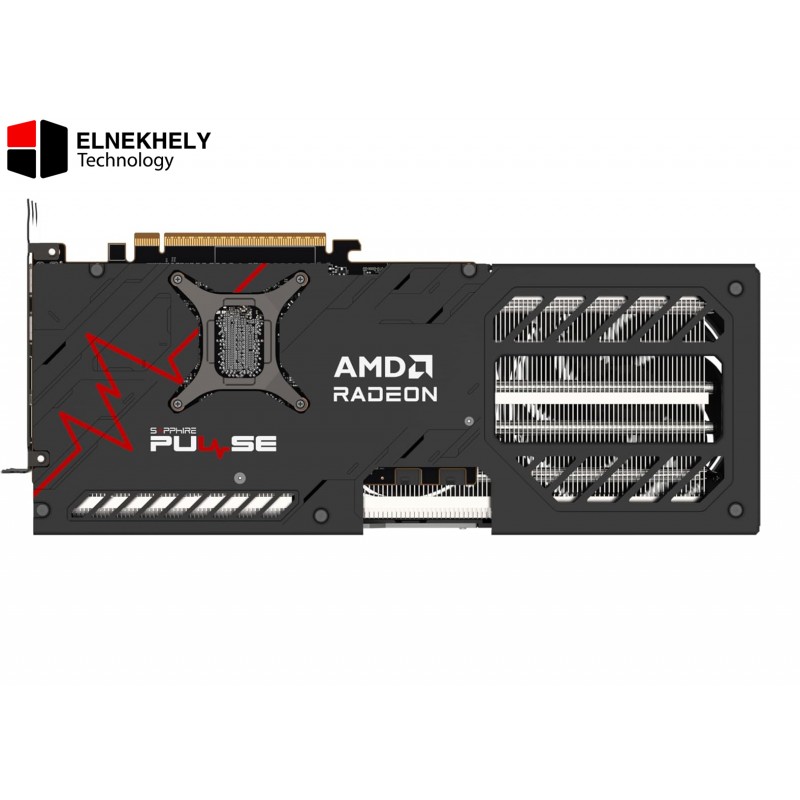

Sapphire PULSE AMD Radeon RX 9070 XT GPU – 16GB GDDR6, 20Gbps, Boost Clock Up to 2970 MHz, 4096 Stream Processors, AMD RDNA 4 Architecture, and 64 Ray Accelerators for Exceptional Gaming Performance

General Specifications

GPU Model: AMD Radeon™ RX 9070
Architecture: AMD RDNA™ 4 Architecture

Clock Speeds

Boost Clock: Up to 2970 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on thermal conditions and workloads.

Game Clock: Up to 2400 MHz
Expected clock speed during typical gaming workloads at standard TGP. Actual results may vary.

Compute Units & Stream Processors

Stream Processors: 4096
Compute Units (CUs): 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Memory

Memory Size / Bus: 16GB / 256-bit GDDR6
Memory Clock: 20 Gbps (Effective)
Infinity Cache: 64MB

Ray Tracing & AI Features

Ray Accelerators: 64
AI Accelerators: 128

Display Outputs

Maximum Displays Supported: 4

Resolution Support:

• HDMI®: 7680×4320 (8K)

• DisplayPort™ 2.1a: 7680×4320 (8K)

Ports:

• 2x HDMI®

• 2x DisplayPort™ 2.1a

Interface

PCI Express: PCI-Express 5.0 x16

BIOS Support

BIOS: UEFI

Game Index

Target Resolution: 4K

AMD Technologies

• AMD RDNA™ 4 Architecture

• 64 Compute Units (3rd Gen Ray Tracing + 2nd Gen AI Accelerators)

• AMD HYPR-RX with AFMF 2

• AMD FidelityFX™ Super Resolution 4 with AI Upscaling

• DisplayPort™ 2.1a

• AMD Radiance Display™ Engine

• AMD Fluid Motion Frames 2

• AMD Radeon™ Anti-Lag 2

• AV1 Encode/Decode

• AMD FidelityFX™ Technologies

• Microsoft® DirectX® 12 Ultimate

• AMD Noise Suppression

• AMD FreeSync™ Technology

• AMD Smart Technologies

• AMD Software: Adrenalin Edition™

Cooling Solution

Cooler Type: Tri-X Cooling Technology

Key Features:

• AeroCurve Fan Blade

• Free Flow

• Integrated Cooling Module

• High TG Copper PCB

• Optimized Composite Heatpipes

• Two-Ball Bearing Fans

• Metal Backplate

• FrameDefense Protection

Performance Features

• 14-Phase Digital Power Design

• Fuse Protection

• Intelligent Fan Control

• Precision Fan Control

• TriXX Supported

• TriXX Boost

Sapphire Exclusive Features

• Honeywell PTM7950 Thermal Interface Material (TIM)

• L-Shape Support Bracket

Form Factor

Type: ATX
Dimensions:

• Length: 320 mm

• Width: 120.25 mm

• Height: 61.6 mm
  Slot Occupancy: 3 slots

Power Consumption

Typical Board Power: 304W
Power Connector:

• 2 x 8-pin PCIe Power Connectors
  Recommended PSU: Minimum 750W

System Requirements

Operating System:

• Linux®

• Windows® 10 & 11 (64-bit required)

Minimum System Memory: 8GB (16GB Recommended)
PCIe Slot Requirement: 1 x PCIe x16 lane on the motherboard
