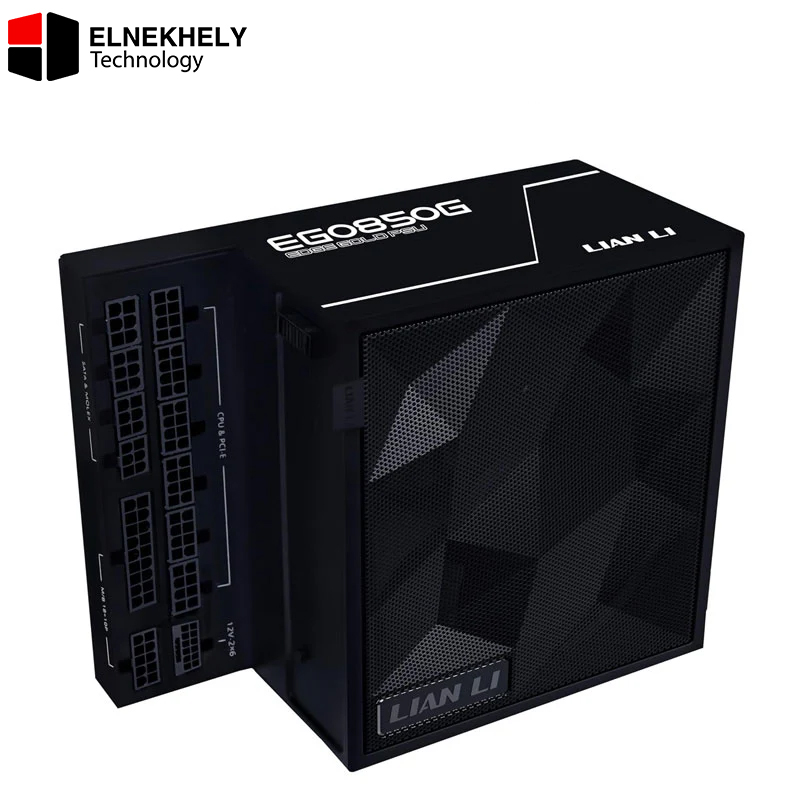

Lian Li EG0850G Edge Gold 850W Fully Modular ATX 3.1 PSU – 80 Plus Gold Certified

Lian Li Edge Gold EG0850G 850W 80 Plus Gold ATX 3.1 Full Modular Power Supply

Models & Wattage

• EDGE GOLD 850 – Model: EG0850G – Max Output: 850W

Certifications
All models are certified with:

• 80 PLUS Gold

• Cybenetics Gold

• PPLP Gold

These certifications ensure high energy efficiency, reliability, and stable power delivery under load.

Efficiency & Power Output

• Up to 91.64% maximum efficiency (varies by model)

• +12V rail provides:

  • 849W (850W model)

• Combined +3.3V & +5V output: 120W for all models

• Input Voltage: 100–240V AC, 50–60Hz

• Active PFC with PF > 0.90 at full load

Cooling & Noise
Each unit is cooled by a high-quality 120mm FDB (Fluid Dynamic Bearing) fan:

• Fan Speed:

  • 2000 RPM (750W / 850W / 1000W)

  • 2400 RPM (1200W)

• Noise Level:

  • 30.9 dBA (low-wattage models)

  • 39.3 dBA (1200W)

Protection Features
All models include comprehensive protection circuits:

• OCP (Over Current Protection)

• OVP (Over Voltage Protection)

• OTP (Over Temperature Protection)

• OPP (Over Power Protection)

• SCP (Short Circuit Protection)

• UVP (Under Voltage Protection)

Connectors (Varies by Model)

• 1 x 24/20-Pin Motherboard (620mm)

• 2 x 8-pin CPU/ATX 12V (750mm)

• 3+ PCIe 6+2-Pin GPU Connectors (650mm)

• Multiple SATA and Molex connectors

• 1 x 12VHPWR 2x6 450W (for 750W & 850W)

• 1 x 12VHPWR 2x6 600W or 2x8 (for 1000W & 1200W)

• USB 9-pin and USB Type-A connectors (for 1000W & 1200W)

Warranty

• 2-Year
